White Meat Deboning Systems
We introduces a new generation of poultry deboning equipment, bringing a combination of durable mechanics and cutting-edge technology in automation ensuring the highest possible yields. MAX XL
White Meat Deboning Systems
Small footprint. Big results.
We introduces a new generation of poultry deboning equipment, bringing a combination of durable mechanics and cutting-edge technology in automation ensuring the highest possible yields. MAX XL
Front Half Deboner (4800 BPH), Tailored for large birds.
The MAX XL has been design to debone water chilled front halves from 1450 gr. up to 2800 gr. (3.2 lbs – 6.2 lbs) with a capacity of 4800 front halves per hour. The stronger MAX XL comes with higher performance, safety and hygiene benefits, while still offering exceptional flexibility in final product. Product options are butterfly fillets and tenders out.
The MAX XL redefines efficiency and excellence in poultry processing.
Butterfly fillets and tenders/inner fillets
The new MAX XL is designed to address the specific needs of the large bird production line. The MAX XL will produce exceptionally better yield and better product quality comparared to other existing auto deboning systems. The MAX XL offers exceptional flexibility with final product options such as butterfly fillets tenders out.
Initial Product
Final Product Options
Byproducts
Integrated Features
Automatic Skinner
Wishbone Remover
Tender Clipping
Tender Harvesting
MAX 2.0
Breast Caps & Front Halves Deboner (6000 BPH)
The MAX 2.0 is a revolutionary concept in breast deboning. It is the first breast caps or front halves deboner that allows for highly efficient breast deboning with the advantage of the smallest footprint available in the market.
The MAX 2.0 can operate at a speed of 6000 breast caps or front halves per hour and only requires a 12 x 2,5 m footprint. In addition, the MAX 2.0 has a user friendly and intuitive operating touch-screen panel with pre-programmed product selection. This allows the operator to easily select a particular product from the menu screen.
The MAX 2.0 comes with features such as:
· Standard one conveyor over the full length of the machine, under the modules
· Drip Trays over the full length of the conveyor
· Optional perpendicular conveyors for specific product discharge
· Various nozzles throughout the machine to reduce sanitation time
· Newly designed cones offer more reliable turning points
How MAX 2.0 gets it done!
Butterfly fillets, half fillets, and tenders/inner fillets
The system uniquely allows the user to operate two different programs, such as fillets or butterflies which can be pre-programmed, allowing you to control production on the fly and save valuable set up time. The MAX 2.0 offers exceptional flexibility with final product options such as butterfly fillets, half fillets and tenders/inner fillets.
Click on the link below to see MAX 2.0 in action!
Initial Product
Features
Final Product Options
Integrated Features
Automatic Skinner
Wishbone Remover
Tender Clipping
Tender Harvesting
Keel Bone Harvester

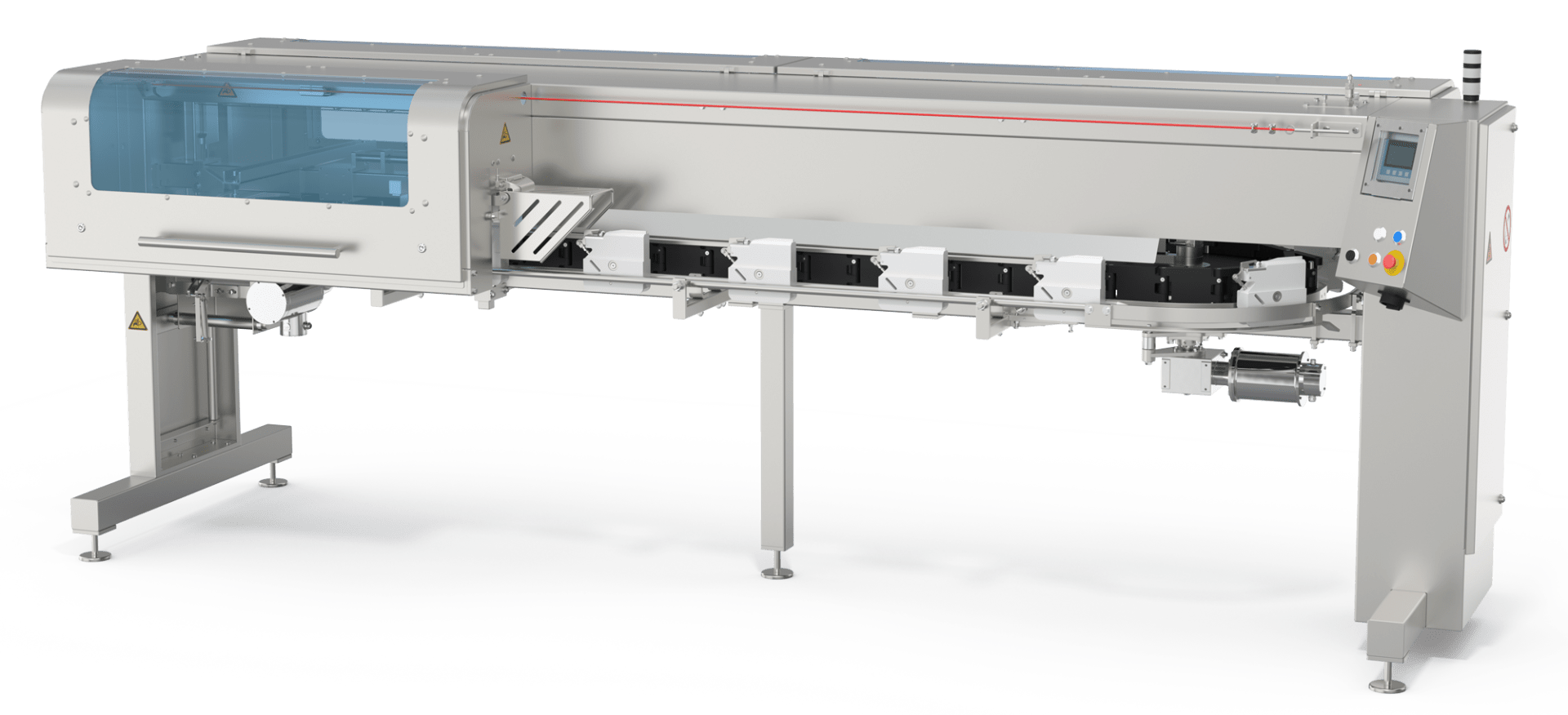

MAXIMA
Breast Cap Deboner (3000 BPH)

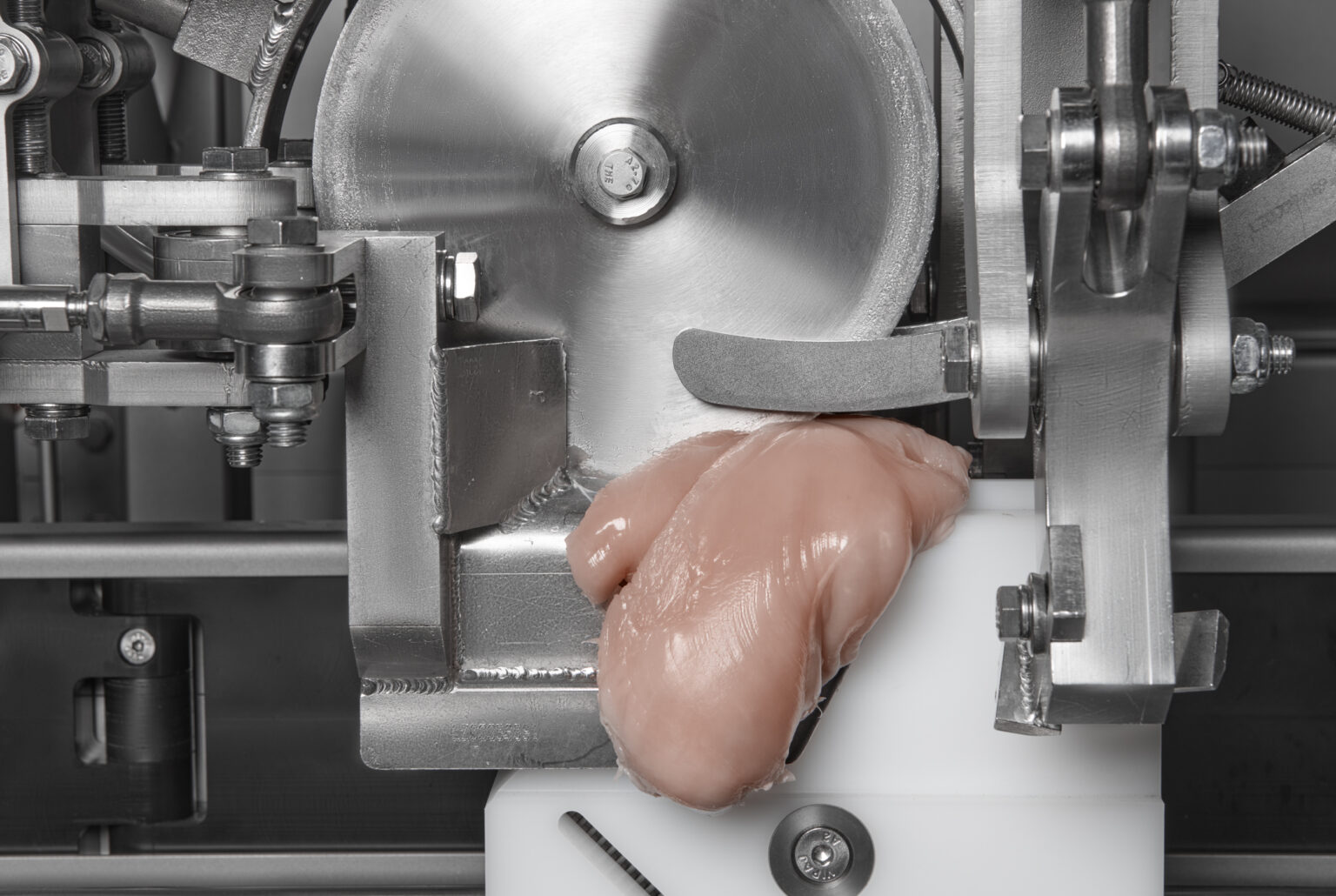

The Maxima Breast Cap Deboner is designed to automatically skin the breast cap, remove the wishbone and debone the breast cap with minimal bone content and high yields. The Maxima has a small footprint and can produce up to 3000 breast caps per hour with minimal loading, inspection and trimming staff.
See MAXIMA in action!
Compact, efficient and flexible
Click on the link below to see MAX 2.0 in action!
Initial Product
Final Product
Byproduct
Technical Specifications
Stainless steel frame and motor
Motors (all stainless steel):
Drive motor (IP66) power is 0,37 kW
Skinning unit motor (IP66) power is 0,55 kW
Deboning unit motor (IP66) power is 0,55 kW
Machine Dimensions:
Length: 4285 mm
Width: 1560 mm
Height: 1540 mm
Weight: approx. 1000 kg

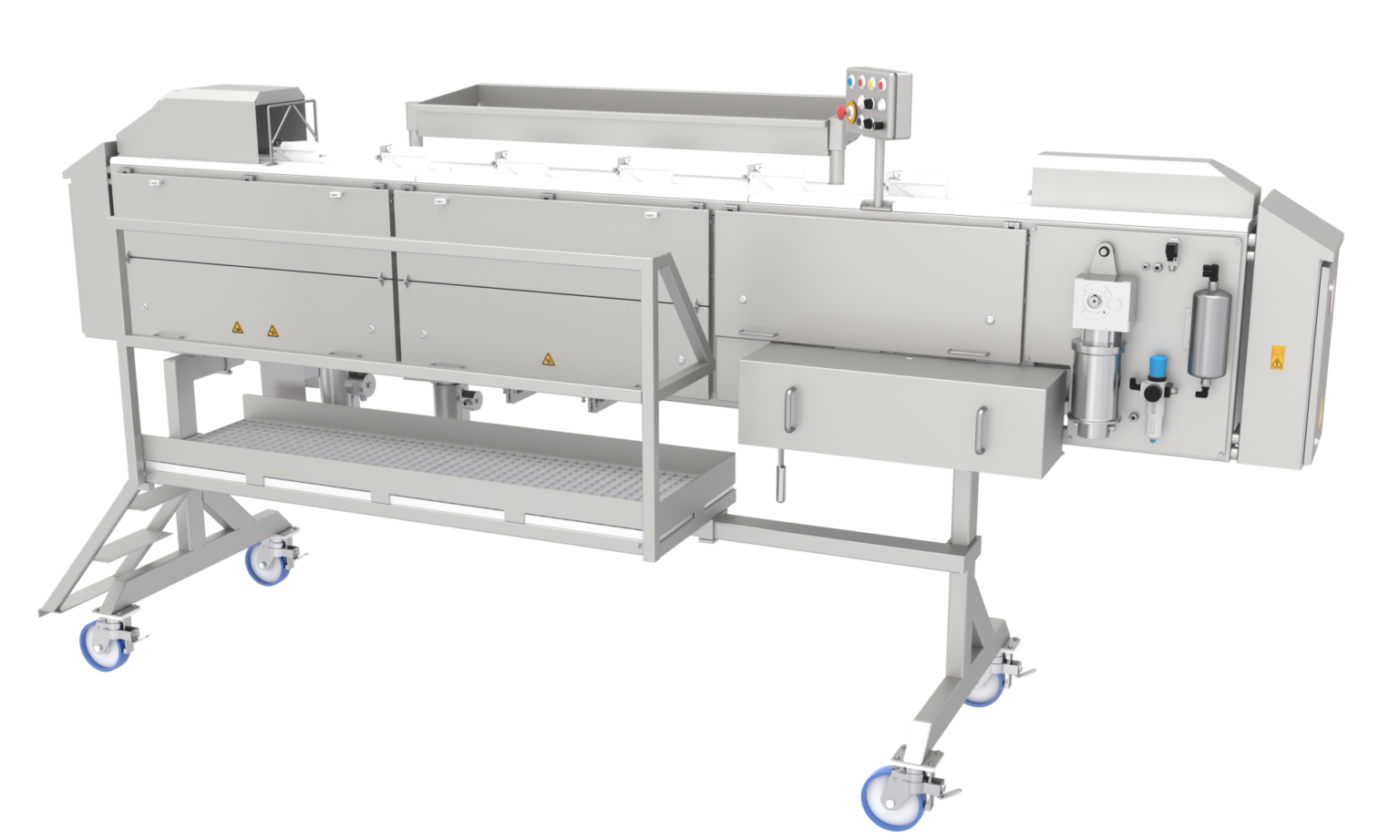

FM 7.50
Breast Cap Deboner (3000 BPH)
The FM 7.50 Breast Cap Deboning Machine debones up to 3000 breast caps per hour. The machine produces single, as well as butterfly fillets and features an automatic skinning and blister remover device.
See FM 7.50 in action!
Compact, efficient and flexible
Click on the link below to see MAX 2.0 in action!
Initial Product
Final Product
Byproduct

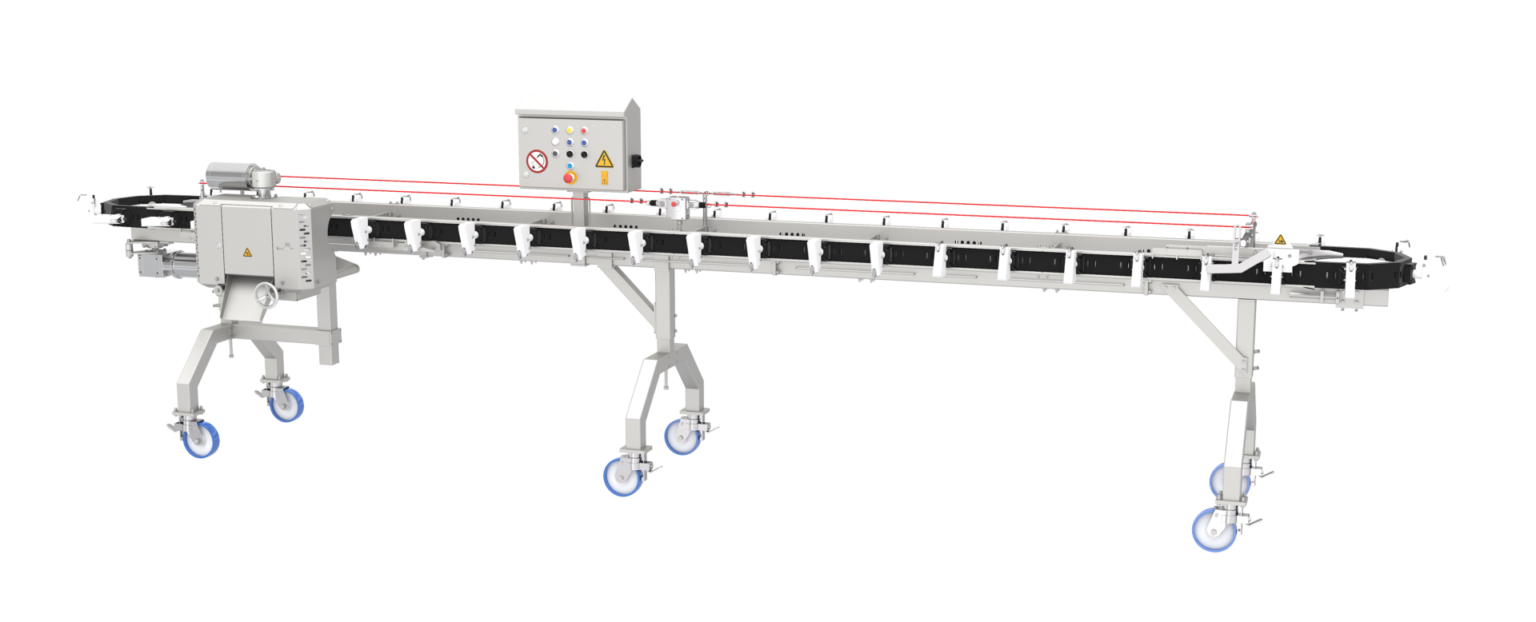

Breast Cap Deboner
1400 - 2400 BPH
The Foodmate Semi Automatic Breast Cap Deboner is utilized as a skinner unit, blister remover and precut device for whole fillets (butterfly) or half fillets. The Deboner is suitable for breasts without backbone, with or without skin.
Initial Product
Final Product
Byproduct
