Flashback Arrestors

Flashback Arrestors

Although working with fuel gases is a safe process in the hands of trained personnel, it can lead to a dangerous situation if the equipment is used incorrectly. Fuel gases should not be used unless proper safety procedures have been understood and applied. Special safety devices as flashback and flame arrestors according to DIN EN ISO 5175-1 prevent dangerous backfire and flashback.

WITT flashback arrestors / flame arrestors (FBA) are used to protect single cylinders, outlet points or pipelines and can be used for almost all technical gases such as acetylene, propane, propylene, ethylene, methane, hydrogen or oxygen.

Flashback Arrestor RF53N

Universal flashback arrestor, certified to DIN EN ISO 5175-1

highest quality from the world market leader

safety elements: flame arrestor [FA], temperature-sensitive cut-off valve [TV], non-return valve [NV], filter on gas inlet

every arrestor 100% tested

IBExU certified

25,5 X 82 mm, 191 g

acetylene max. 13 m³/h (free flow-off)

fuel gases max. 68 m³/h (free flow-off)

oxygen max. 187 m³/h (free flow-off)

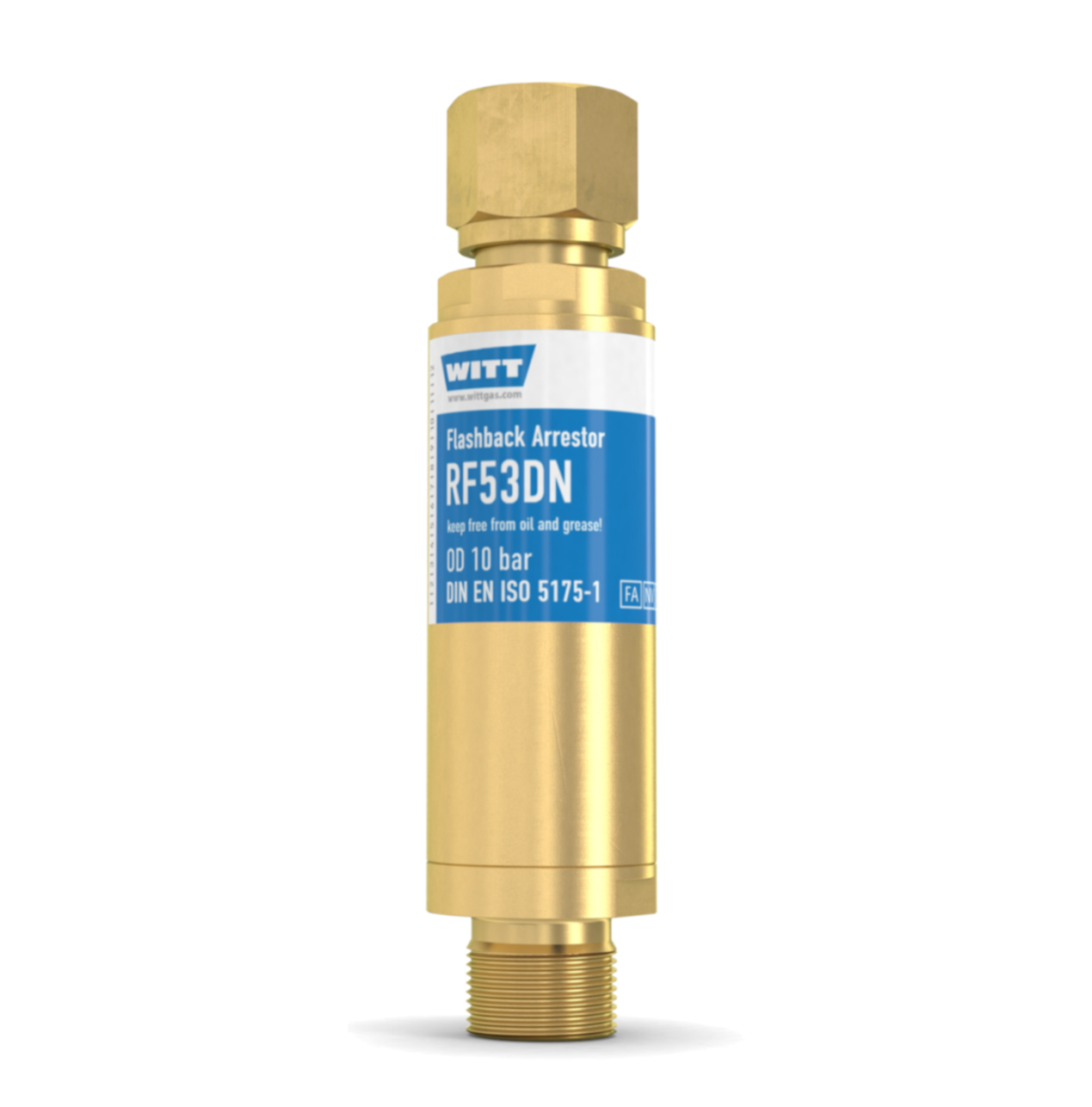

Flashback Arrestor RF53DN

Universal flashback arrestor, certified to DIN EN ISO 5175-1, with pressure relief valve [RV]

highest quality from the world market leader

safety elements: flame arrestor [FA], temperature-sensitive cut-off valve [TV], non-return valve [NV], filter on gas inlet, pressure relief valve

every arrestor 100% tested

IBExU certified

25,5 X 101 mm, 260 g

acetylene max. 11,5 m³/h (free flow-off)

fuel gases max. 105 m³/h (free flow-off)

oxygen max. 56 m³/h (free flow-off)

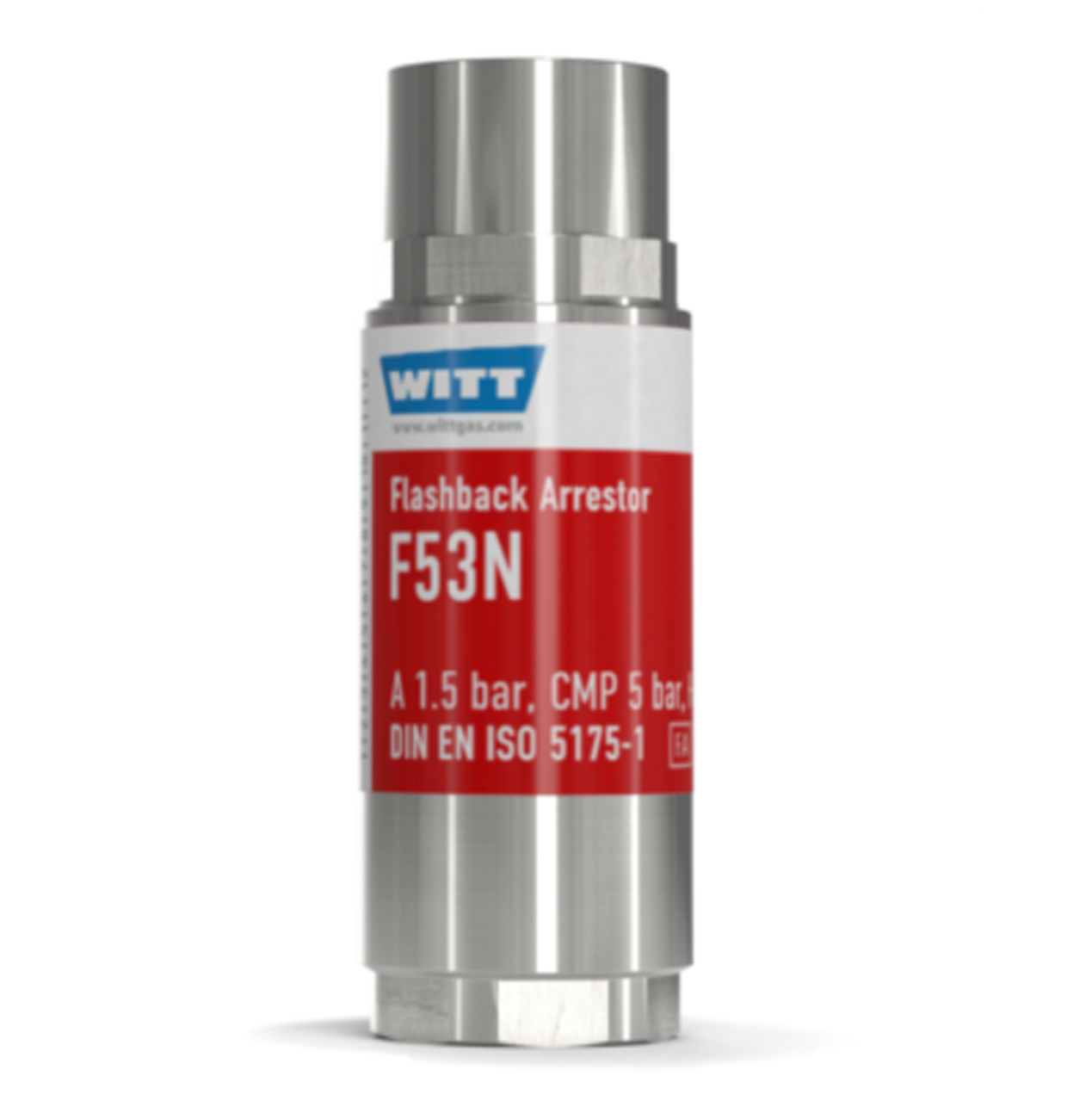

Flashback Arrestor F53N-ES

Universal flashback arrestor, certified to DIN EN ISO 5175-1, stainless steel, without non-return valve

highest quality from the world market leader

safety elements: flame arrestor [FA], temperature-sensitive cut-off valve [TV]

ideal for use at low pressures e.g. at the inlet or outlet of a gas analyser

every arrestor 100% tested

also ideal for use with corrosive gases

25,5 X 74 mm, 207 g

air max. 225 m³/h (free flow-off)

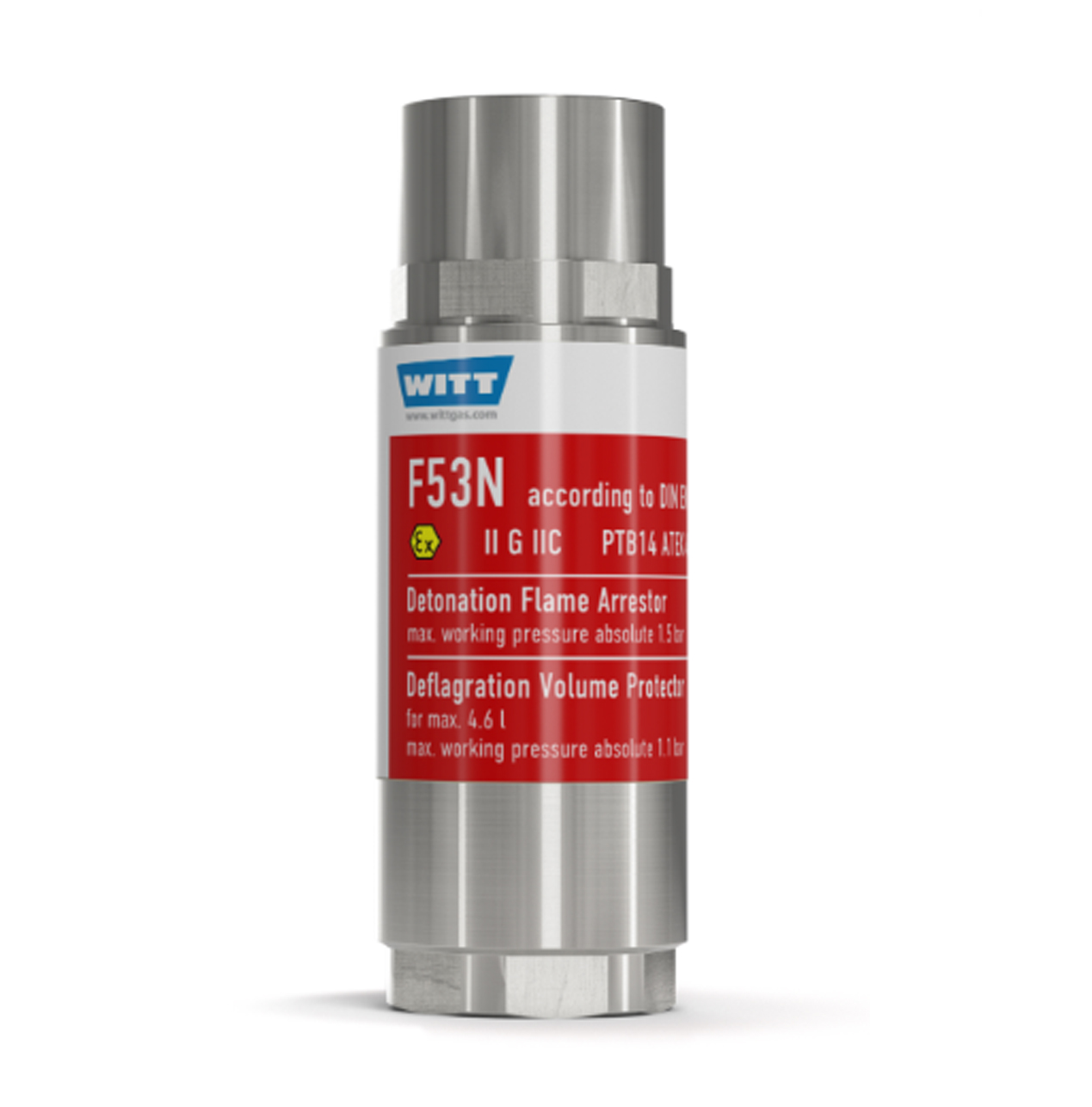

Detonation Flame Arrestor/ Deflagration Volume Protector F53Ndeto

Suitable as a detonation flame arrester ideal for mounting in small pipelines and to protect appliances, for example gas analysers

highest quality from the world market leader

safety element: flame arrestor

every device 100% tested

PTB tested

25 X 68 mm, 207 g

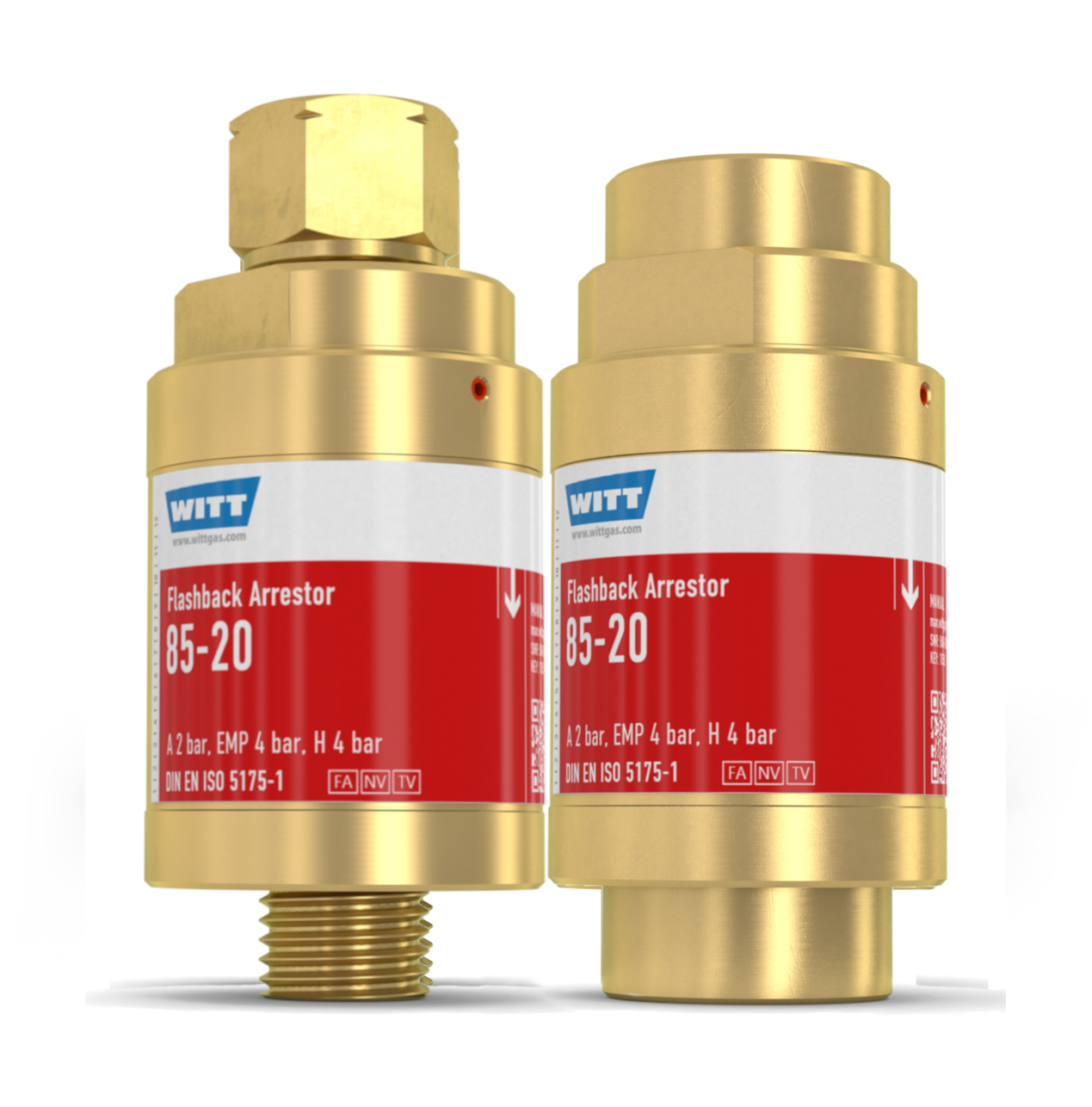

Flashback Arrestor 85-20

Standard flashback arrestor, certified to DIN EN ISO 5175-1, for high flows

highest quality from the world market leader

safety elements: flame arrestor [FA], temperature-sensitive cut-off valve [TV], non-return valve [NV]

every arrestor 100% tested

62 X 131/137 mm, 1400-1500 g

acetylene max. 45 m³/h

fuel gases max. 324 m³/h

oxygen max. 333 m³/h

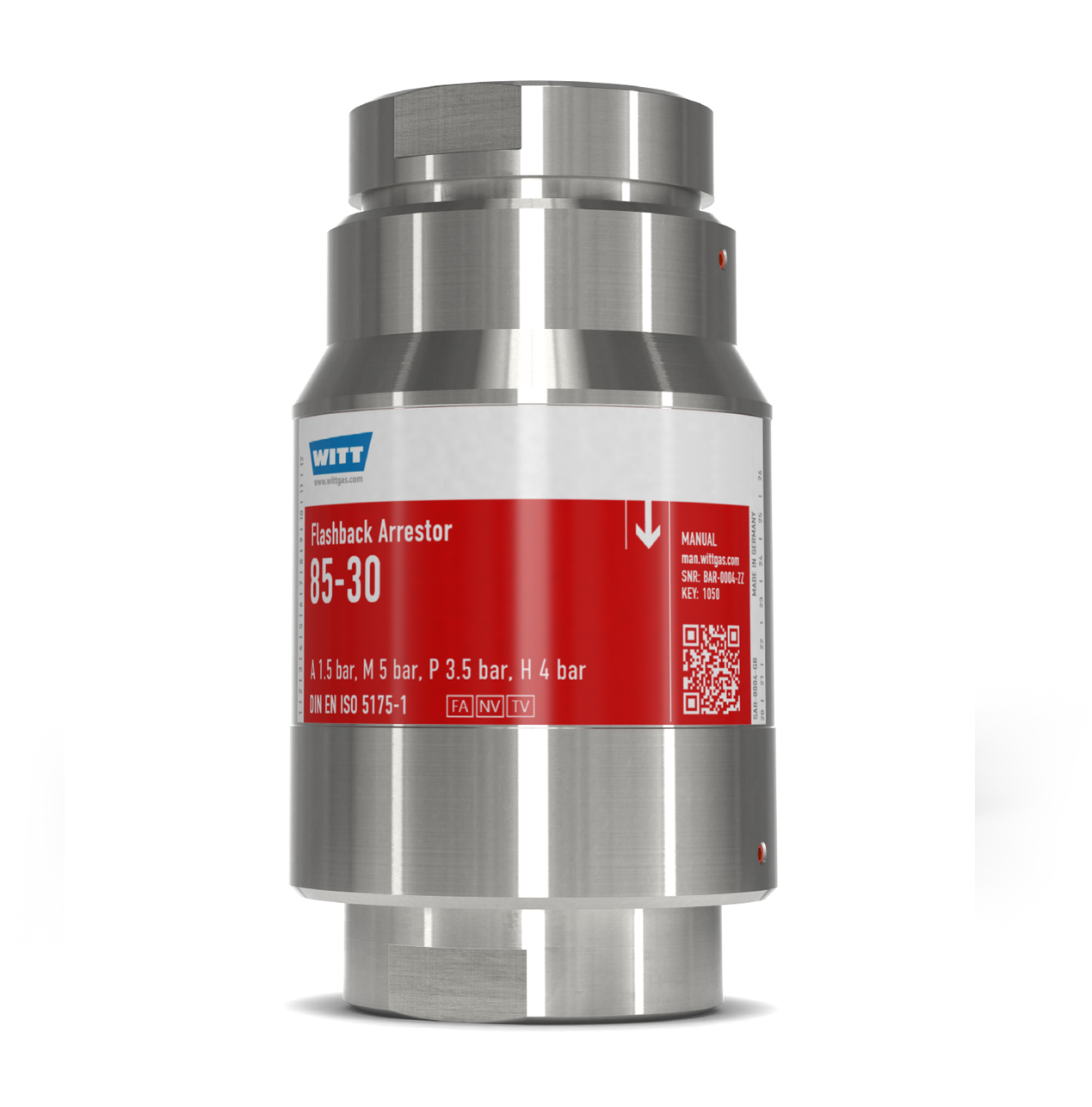

Flashback Arrestor RF85-30N-ES

Stainless steel flashback arrestor, certified to DIN EN ISO 5175-1, standard for maximum flows

highest quality from the world market leader

safety elements: flame arrestor [FA], temperature sensitive cut-off valve [TV], non-return valve [NV], filter on gas inlet

every arrestor 100% tested

also ideal for use with corrosive gases

84 X 162/188 mm, 4.455 g

acetylene max. 70 m³/h (free flow-off)

fuel gases max. 675 m³/h (free flow-off)

oxygen max. 860 m³/h (free flow-off)

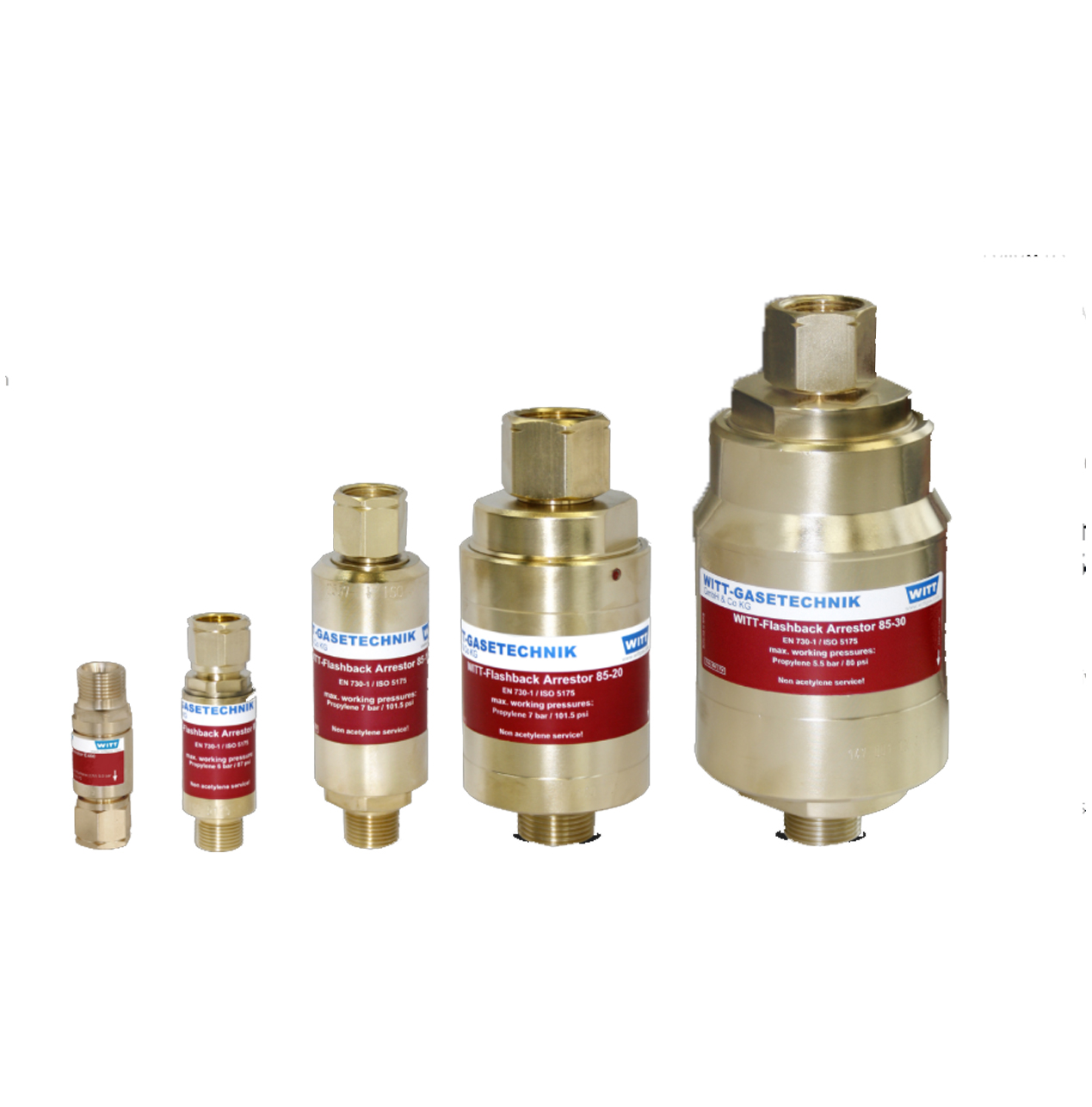

Flashback Arrestors for Propylene

Flashback arrestors, various performance characteristics, certified to DIN EN ISO 5175-1

highest quality from the world market leader

safety elements: flame arrestor [FA], temperature-sensitive cut-off valve [TV], non-return valve [NV]

every arrestor 100% tested

for gas main supply points and single cylinder high flow system, for torch handles

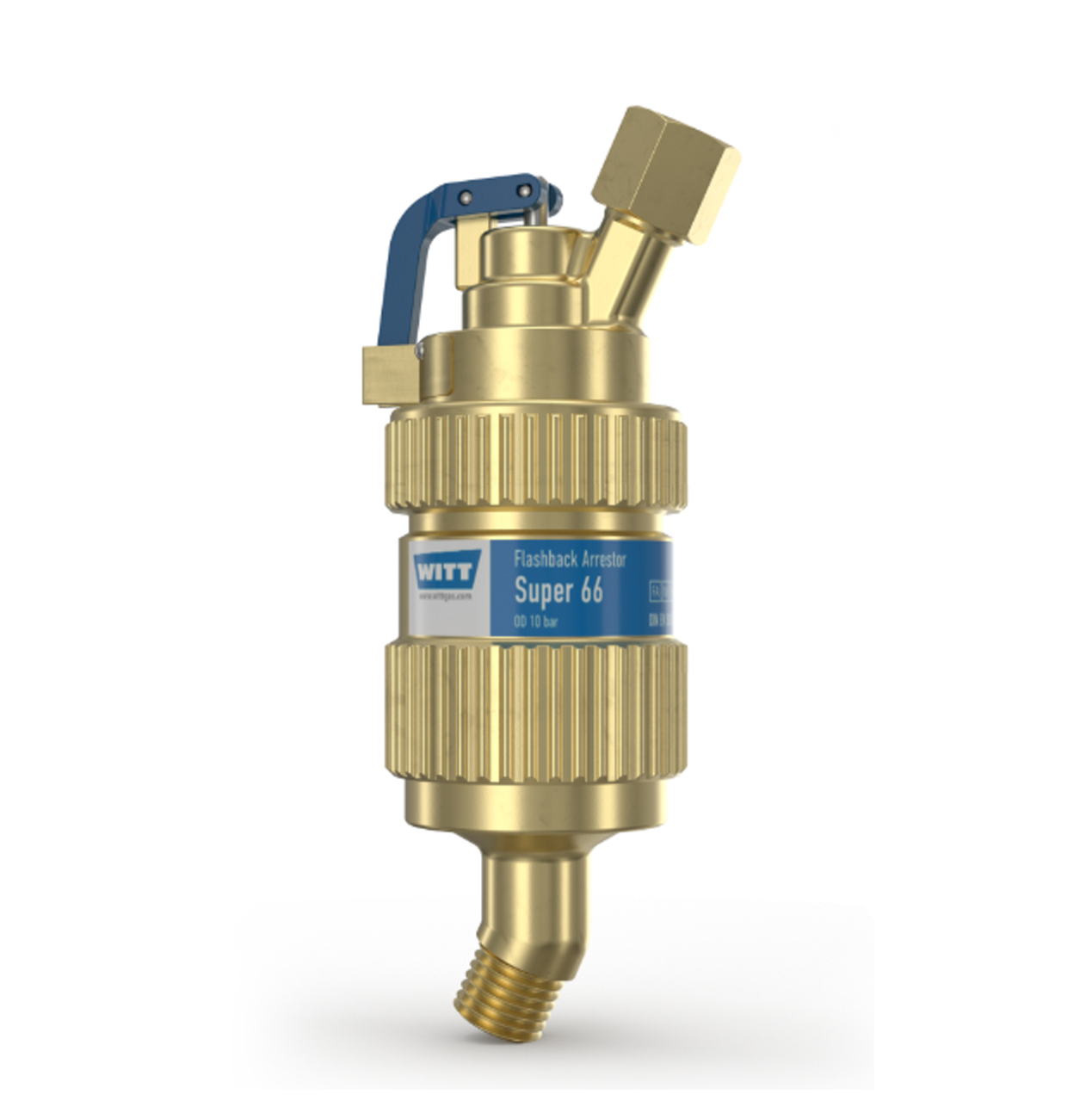

Flashback Arrestor Super 66

Resettable Flashback arrestor, certified to DIN EN ISO 5175 with pressure sensitive cut-off valve [PV] and visual warning, and maximum number of safety elements, for high flow rates

highest quality from the world market leader

safety elements: flame arrestor [FA], temperature-sensitive cut-off valve [TV], non-return valve [NV], filter at the gas inlet and pressure sensitive cut-off valve [PV]

stops supply of fuel gas in case of flashback and shows visual warning that flashback has occured, easy to reset

every arrestor 100% tested

IBExU certified

63 X 160 mm, 1.104 g

acetylene max. 20 m³/h (free flow-off)

fuel gases max. 225 m³/h (free flow-off)

oxygen max. 105 m³/h (free flow-off)

Flashback Arrestor E460-1

Flashback arrestor, certified to DIN EN ISO 5175-1, with nozzle connection

highest quality from the world market leader

safety elements: flame arrestor [FA], non-return valve [NV]

every arrestor 100% tested

IBExU certified

86 mm height, 99 g

acetylene max. 9 m³/h (free flow-off)

fuel gases max. 82 m³/h (free flow-off)

oxygen max. 119 m³/h (free flow-off)

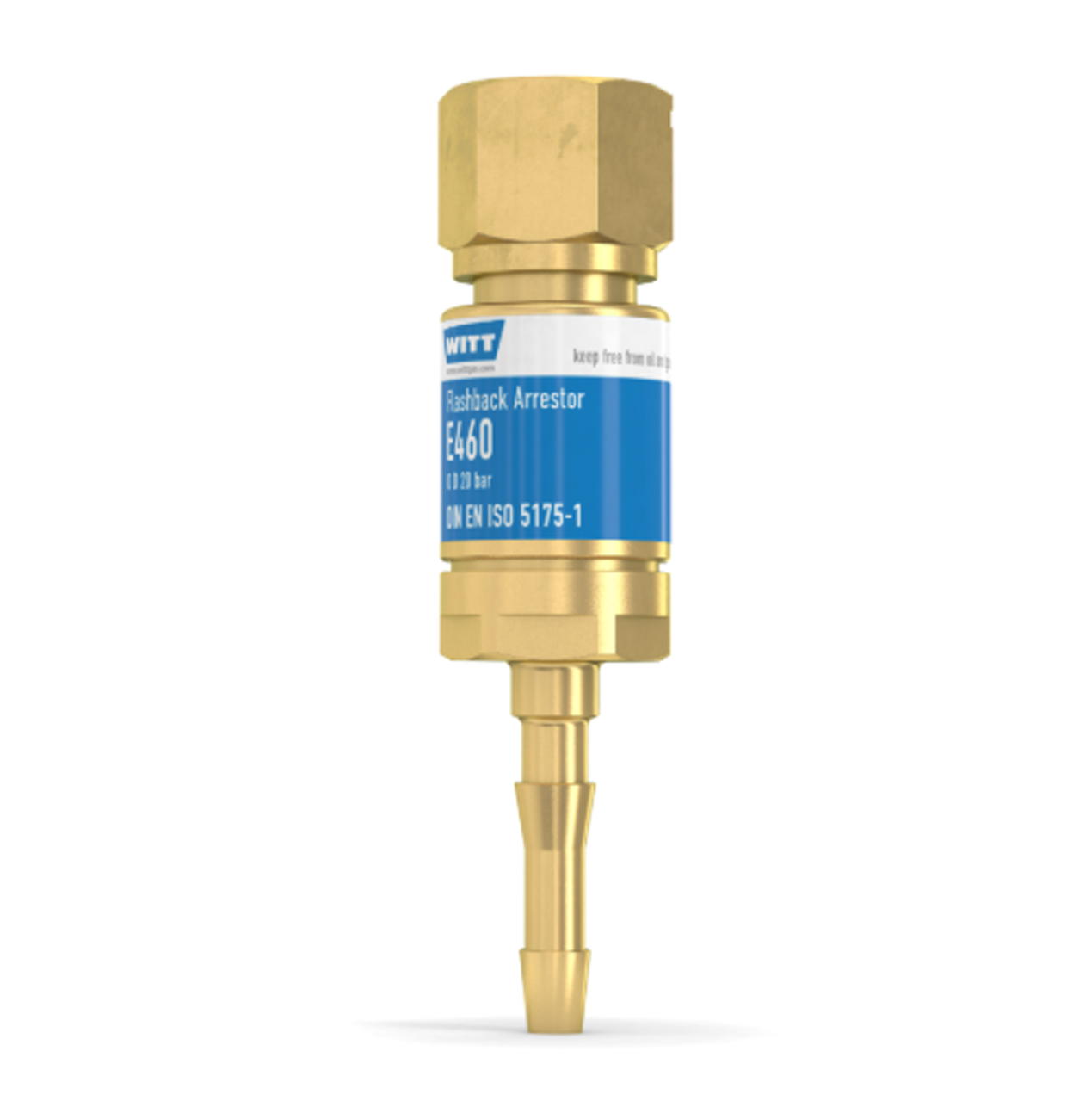

Flashback Arrestor E460-2

Flashback arrestor, certified to DIN EN ISO 5175-1, for hose-mounting

highest quality from the world market leader

safety elements: flame arrestor [FA], non-return valve [NV]

every arrestor 100% tested

IBExU certified

99 mm height, 93 g

acetylene max. 9 m³/h (free flow-off)

fuel gases max. 82 m³/h (free flow-off)

oxygen max. 119 m³/h (free flow-off)

Flashback Arrestor E460-3

Flashback arrestor, certified to DIN EN ISO 5175-1, with thread connection for torch or cutting machine

highest quality from the world market leader

for individual cylinders

safety elements: flame arrestor [FA], non-return valve [NV]

every arrestor 100% tested

IBExU certified

65 mm height, 107 g

acetylene max. 9 m³/h (free flow-off)

fuel gases max. 82 m³/h (free flow-off)

oxygen max. 119 m³/h (free flow-off)

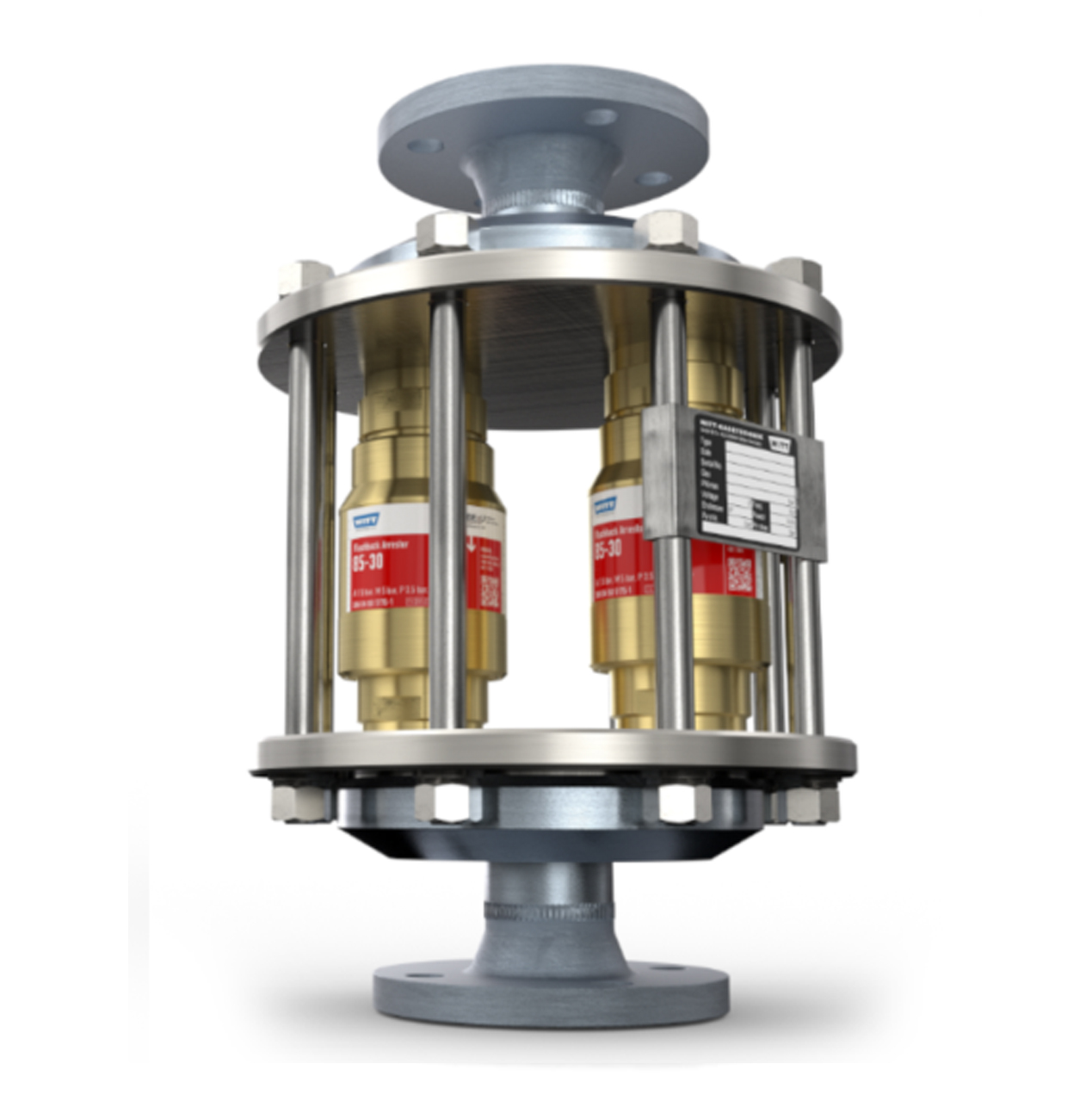

Safety Group 645/85-30

Parallel connection of 2, 4 or 5 flashback arrestors 85-30, certified to DIN EN ISO 5175-1, for high flow rates

highest quality from the world market leader

safety elements: flame arrestor [FA], temperature-sensitive cut-off valve [TV], non-return valve [NV]

every arrestor 100% tested

285 X 430 mm, 44 kg (2X), 53 kg (4X)

acetylene max. 392 m³/h (free flow-off)

fuel gases max. 2.740 m³/h (free flow-off)

oxygen max. 1.850 m³/h (free flow-off)

This model is also available in Stainless Steel
