Gas Analysers

Gas Analysers

Gas analysers from WITT determine gas concentrations in gas mixtures quickly and precisely and are highly versatile. State-of-the-art sensors and intuitive controls allow easy handling of the gas analysers, guarantee exact analysis results and ensure the quality of your processes. Depending on the type of application, the gas analysers can be supplied separately or integrated into gas mixing systems.

Gas Analyser OXYPAD

O2 or O2/CO2 gas analyser for MAP packaging - Mobile table-top unit

fast, accurate sample headspace testing for quality control

ideal for mobile use thanks to compact and lightweight design and battery operation

intuitive operation via large touch screen

low sample gas requirement ideal also for small packages

needle casing keeps the needle clean and safe

ergonomic needle pen for precise and safe handling

low operating costs due to long lifetime of the O2 sensor (approx. 2 years, depending on use)

low follow-up costs: easy sensor change and calibration by user possible

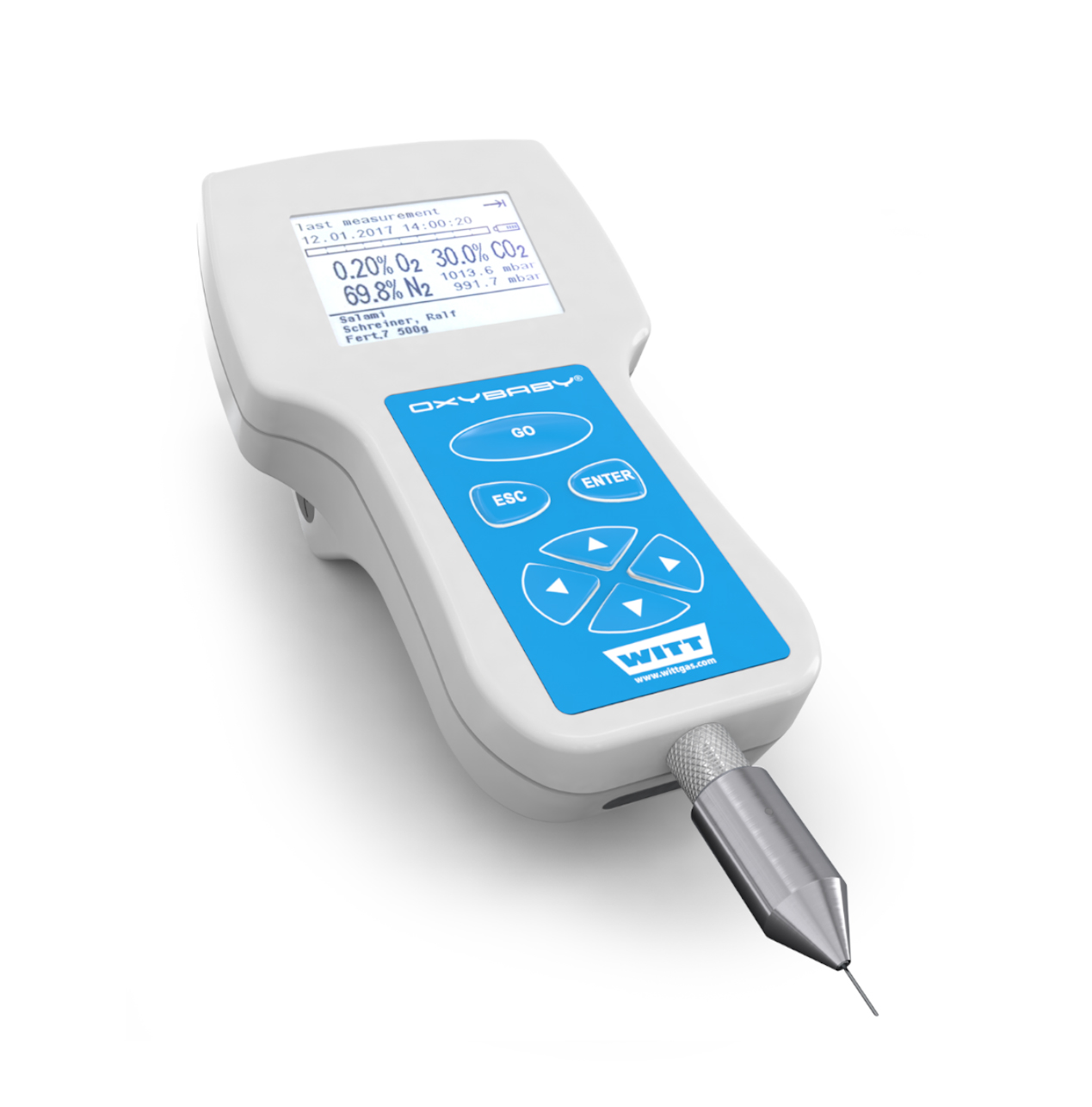

Headspace Gas Analyser OXYBABY® 6.0

O2 and CO2 gas analyser for headspace of MAP-packages, premium

ideal for quality control in modified atmosphere packaging

fast and precise sample headspace testing

also measures packaging pressure

minimum sample gas requirement (2 ml)

oxygen (O2) value is displayed in 0,01% steps

long lifetime of O2 oxygen sensor (approx. 2 years, depending on use)

high capacity data storage, with export port

low follow-up costs: easy sensor replacement and calibration by user

can be used as a tabletop unit by simply inserting a hose

for accessories such as Can-Piercer, table-stand or consumables, see section Accessories

optional: software for data management and analysis

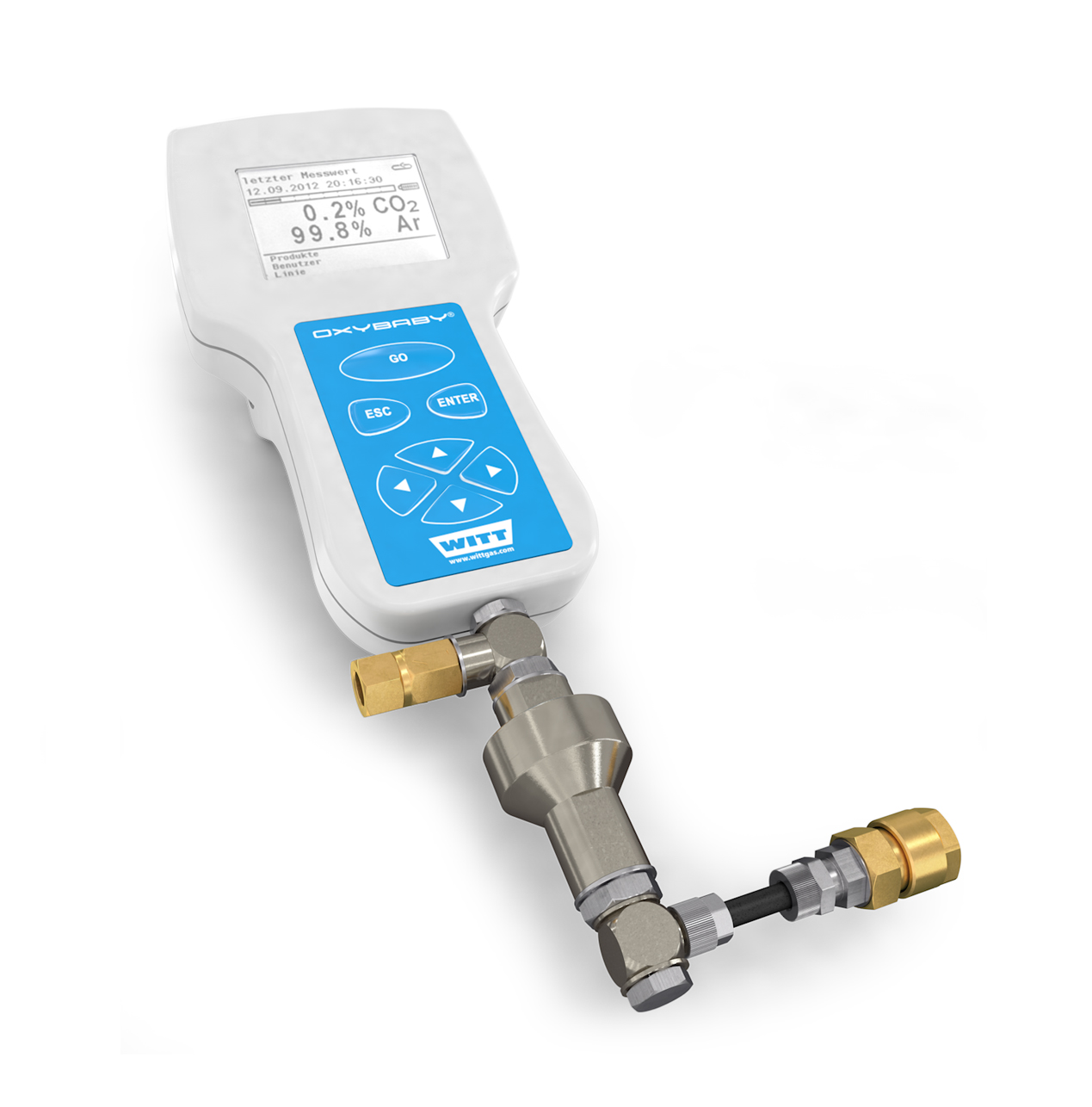

Gas Analyser OXYBABY® 6.0 P

O2-, CO2 or O2/CO2-gas analyser for pressure lines, premium version

for pressure lines e.g. in welding technology

fast and precise sample testing

portable and rechargeable

O2 value is displayed in 0.01% steps

long lifetime of O2 sensor (approx. 2 years, depending on use)

high capacity data storage, with export port

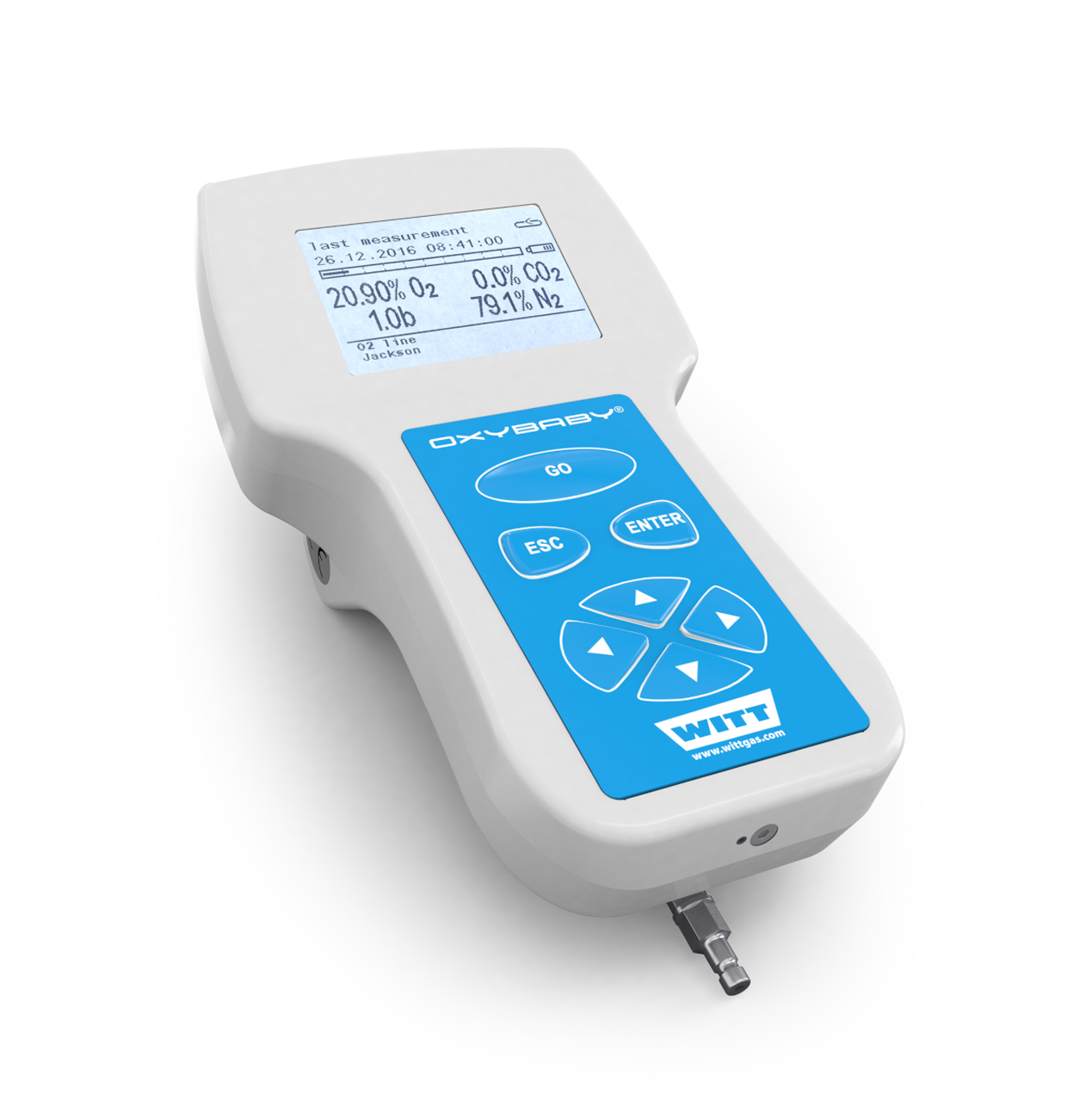

Gas Analyser OXYBABY® Med

O2- and O2/CO2-gas analyser for medical applications

ideal for hospitals

fast and precise sample testing

also measures pressure

portable and rechargeable

O2 value is displayed in 0,01% steps

long lifetime of O2 sensor (approx. 2 years, depending on use)

multiple data-handling options

optional: set of adapters

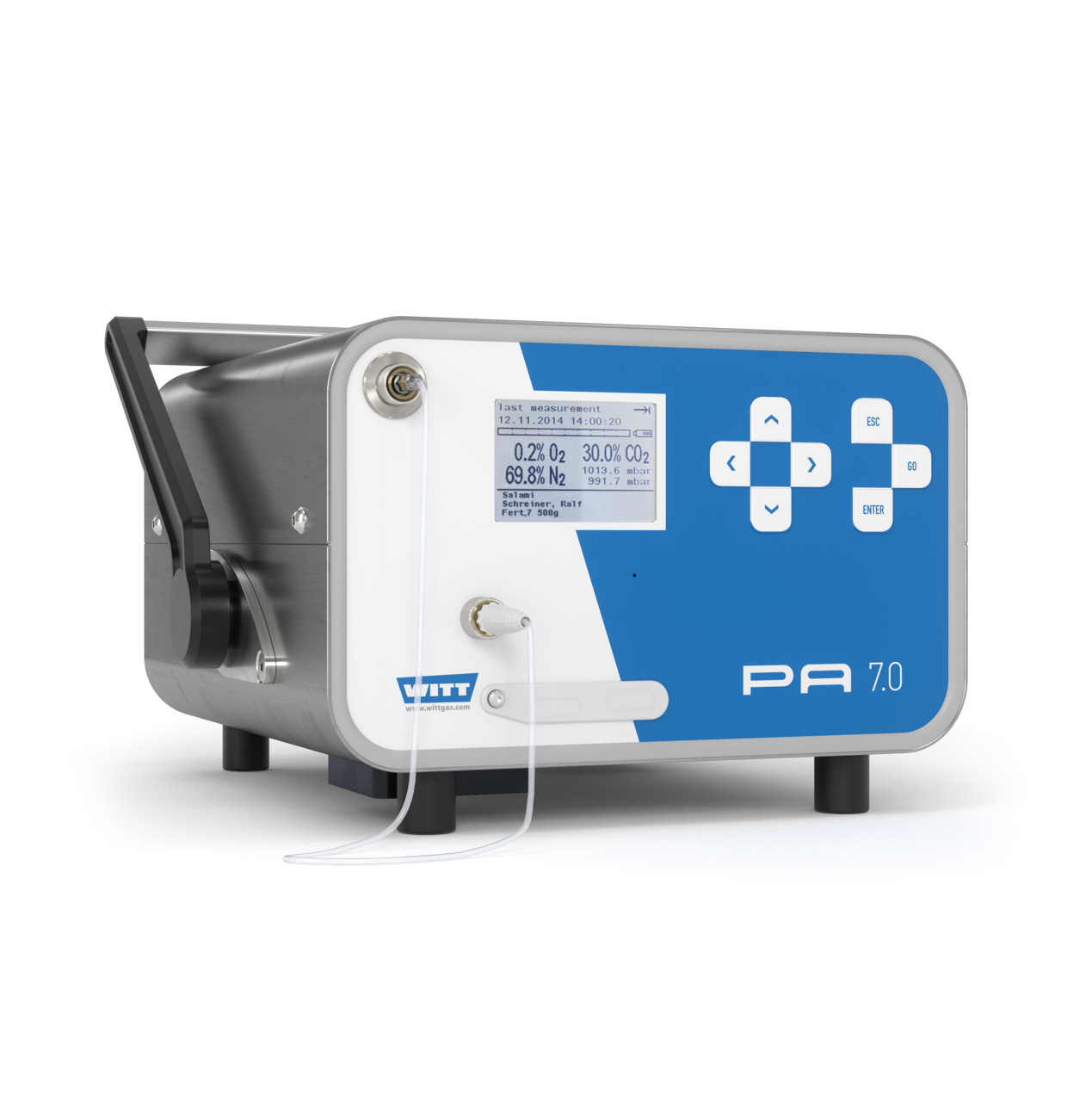

Gas Analyser PA 7.0

Compact gas analyser for O2, CO2 or O2/CO2, various applications

sample and inline analysis possible, including simultaneous

fast and precise analysis technology

used for a variety of MAP-packages or in welding

alarm signal is triggered when tolerance limits are exceeded

multiple output signals

for accessories such as Can-Piercer or consumables, see section Accessories

optional: O 2 measurement also in ppm range

optional: software for data management and analysis

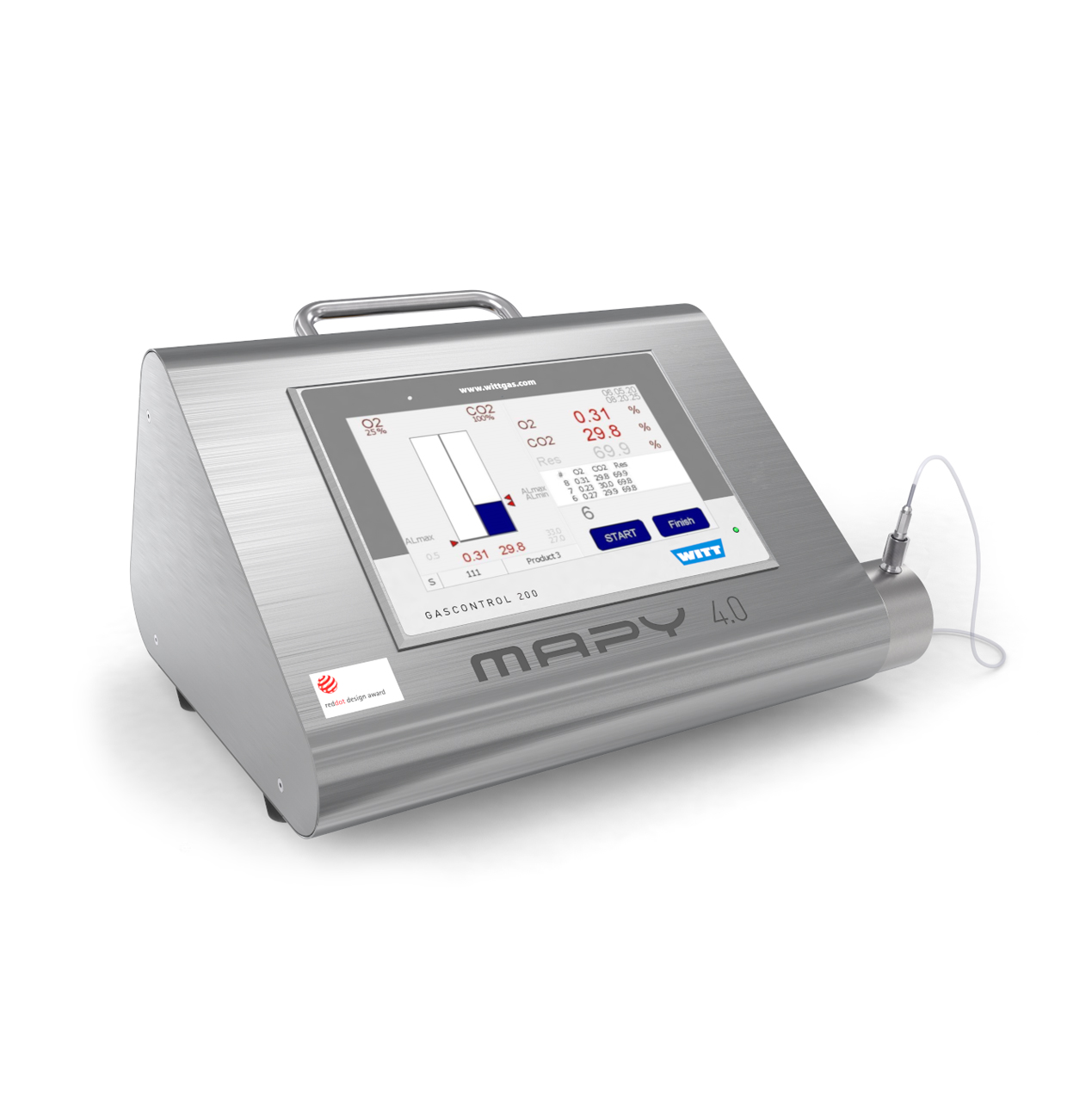

Gas Analyser MAPY 4.0

Premium gas analyser for O2, CO2 or O2/CO2, various applications

sample and inline analysis possible

ideal for controlling MAP-packages

fast and precise analysis technology

alarm signal is triggered when tolerance limits exceeded

Ethernet-interface for integration into company networks

easy operation via touchscreen

optimal for standardisation of the workflow

for accessories such as Can-Piercer or consumables, see section Accessories

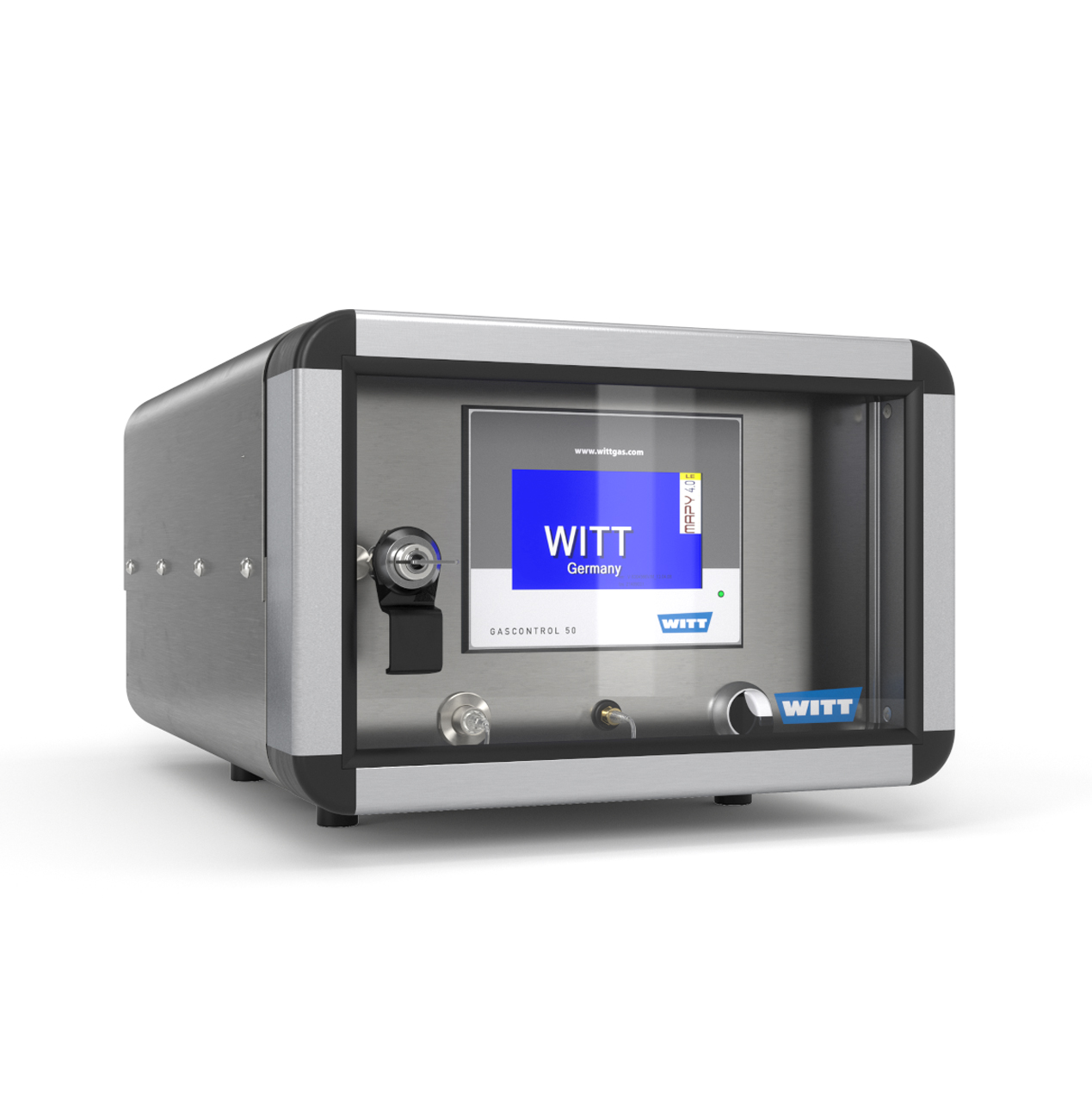

Inline Gas Analyser MAPY LE

Gas analyser for O2, CO2 or O2/CO2, e.g. for flow packs

inline and sample analysis possible

ideal for controlling MAP flow-packs

fast and precise analysis technology

alarm signal is triggered when tolerance limits are exceeded

Ethernet-interface for integration into company networks

easy operation via touchscreen

minimisation of the gas consumption via combination with gas mixer KM-FLOW or KD gas meterer

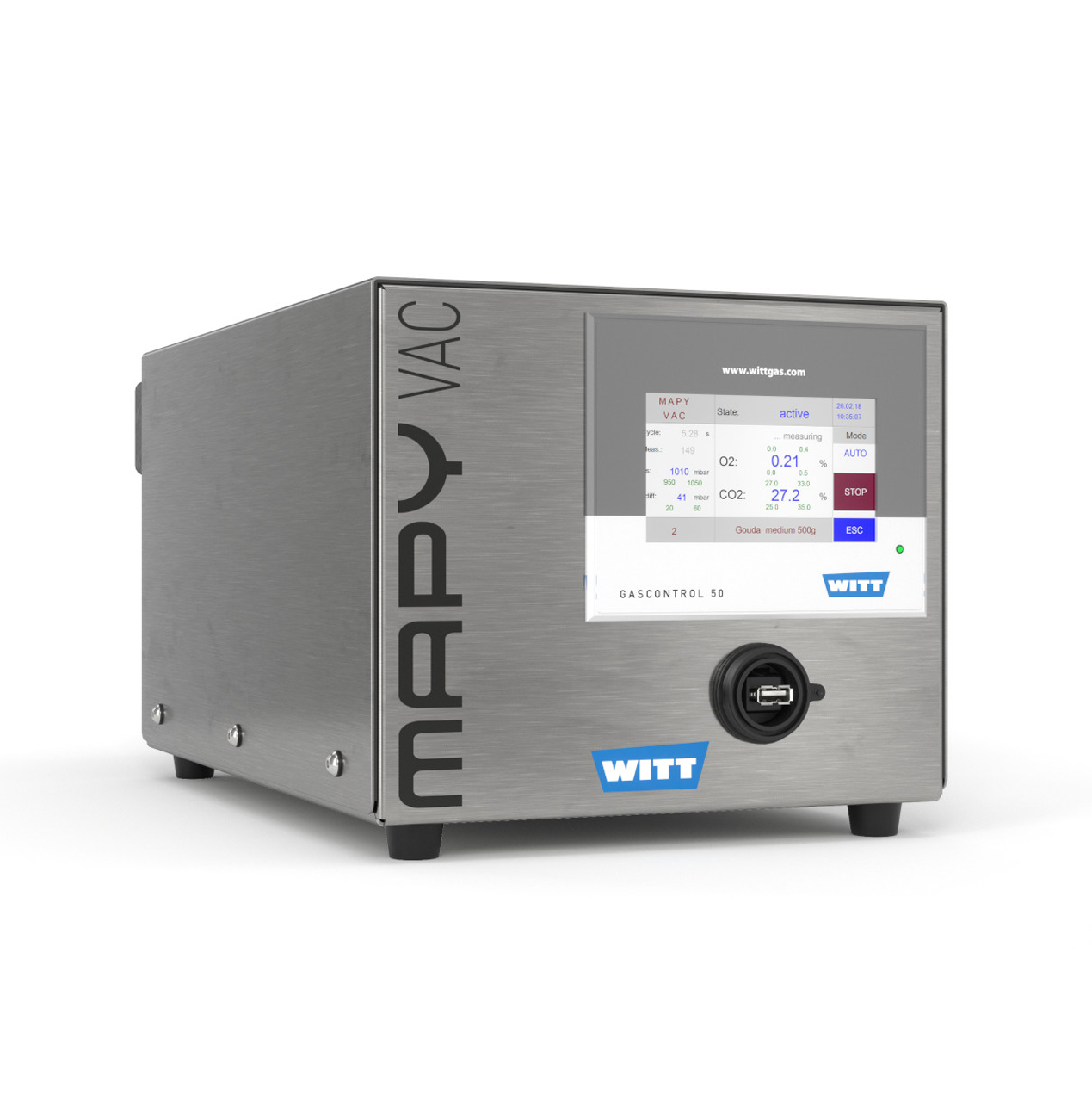

Inline Gas Analyser MAPY VAC

for traysealers and thermoformers, O2 or O2/CO2

fast and precise gas analysis before sealing

measures every machine cycle

alarm signal is triggered when tolerance limits are exceeded

Ethernet-interface for integration into company networks

with touchscreen or as black box version

for optimised quality control

ideal in combination with a WITT gas mixer

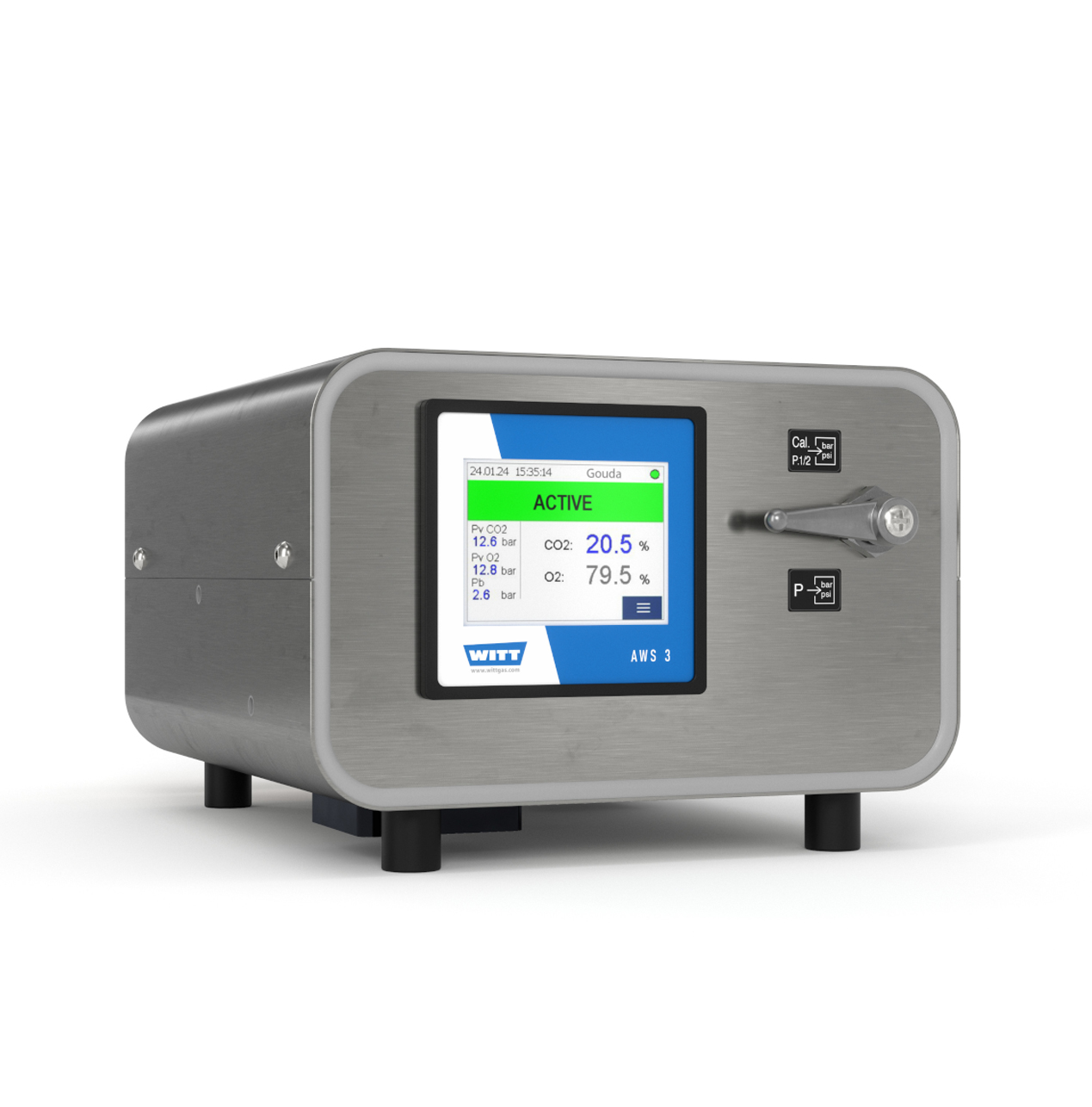

Inline gas analyser with AWS3

for O2, CO2 or O2/CO2 for the monitoring of gas concentrations from pressurised pipelines

technology reduced to the essentials for a lean workflow

long-term stable measurement results and high accuracy due to pressure compensation

as a single or dual analyser for the gases O2 and CO2

easy operation via touchscreen

optional: signals via OPCUA and Modbus TCP

can be integrated into gas mixers KM100-2ME, MG50-2ME, MG100-2ME and MG200-2ME

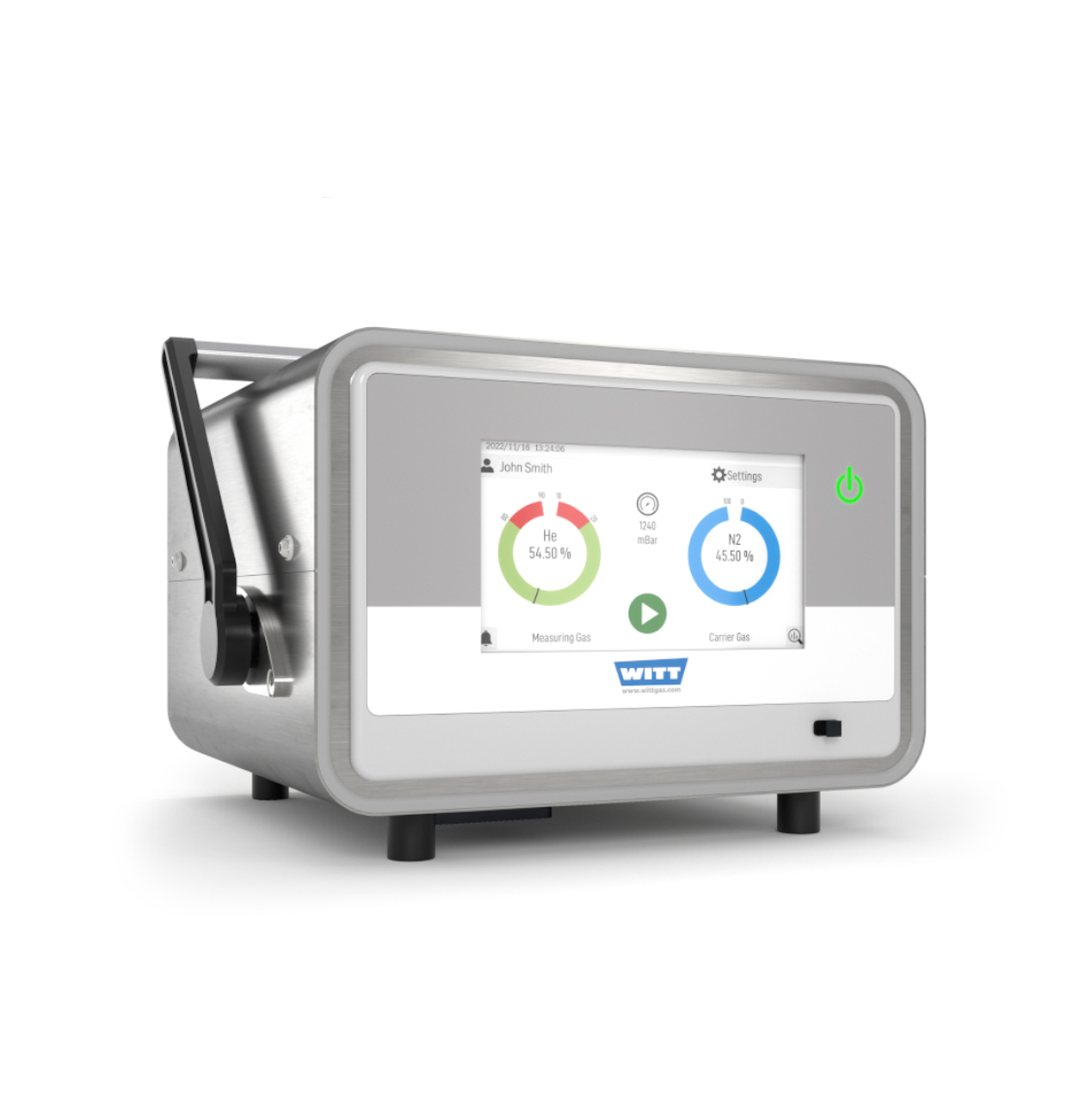

MFA 10.0

Compact multi gas analyser for up to 16 binary gas mixtures

ideal for service and mobile analysis

measurement principle: thermal conductivity

simple to operate via 7" touch-screen

long service life of measurement cell

inexpensive and low-maintenance

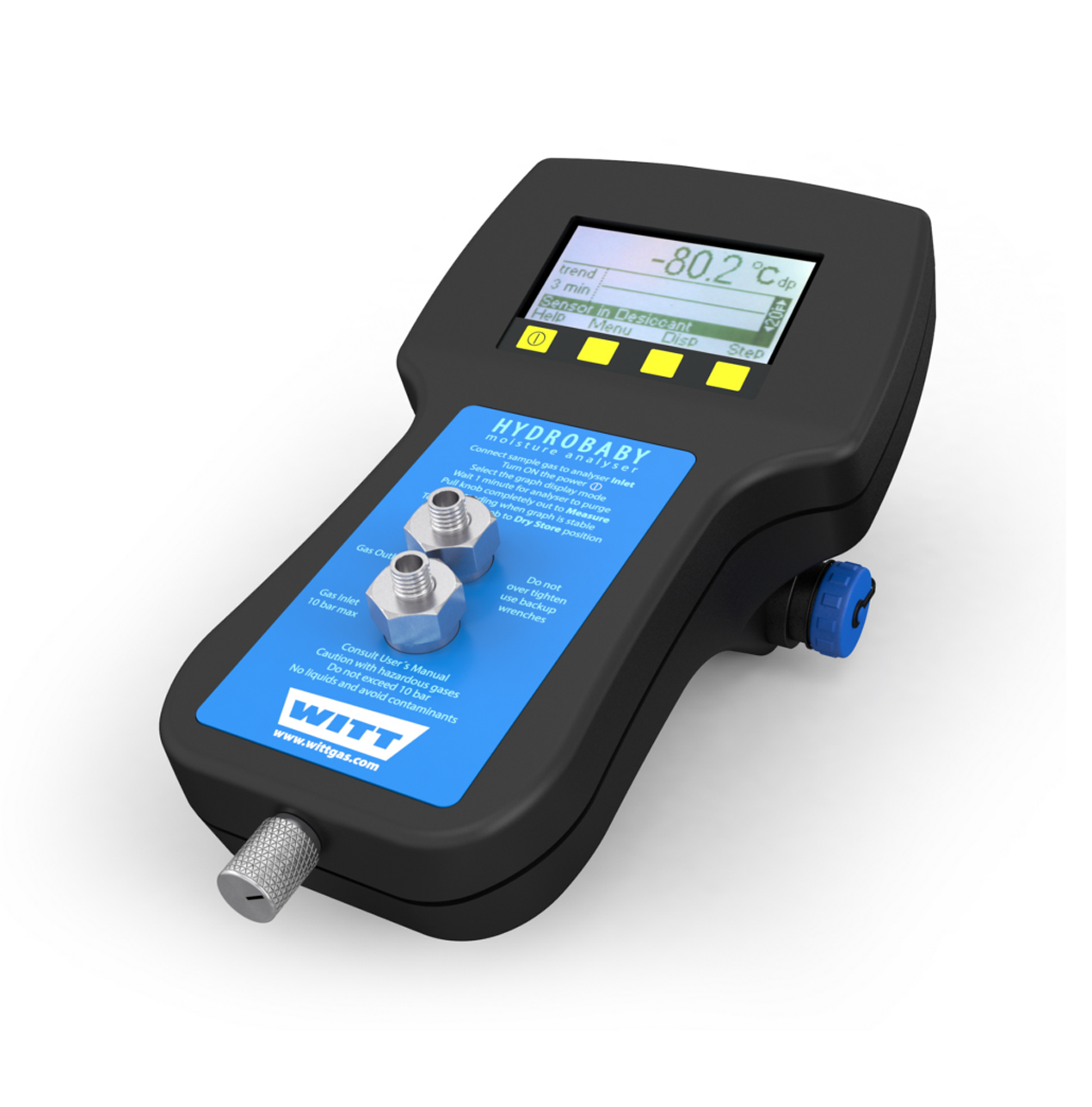

Moisture Analyser HYDROBABY

Mobile analyser for moisture and dewpoint measurement in gases

reliable, quick and accurate

dew point from -110° C to +20° C

for a variety of applications

portable and rechargeable

integrated data storage for dew point, temperature and pressure

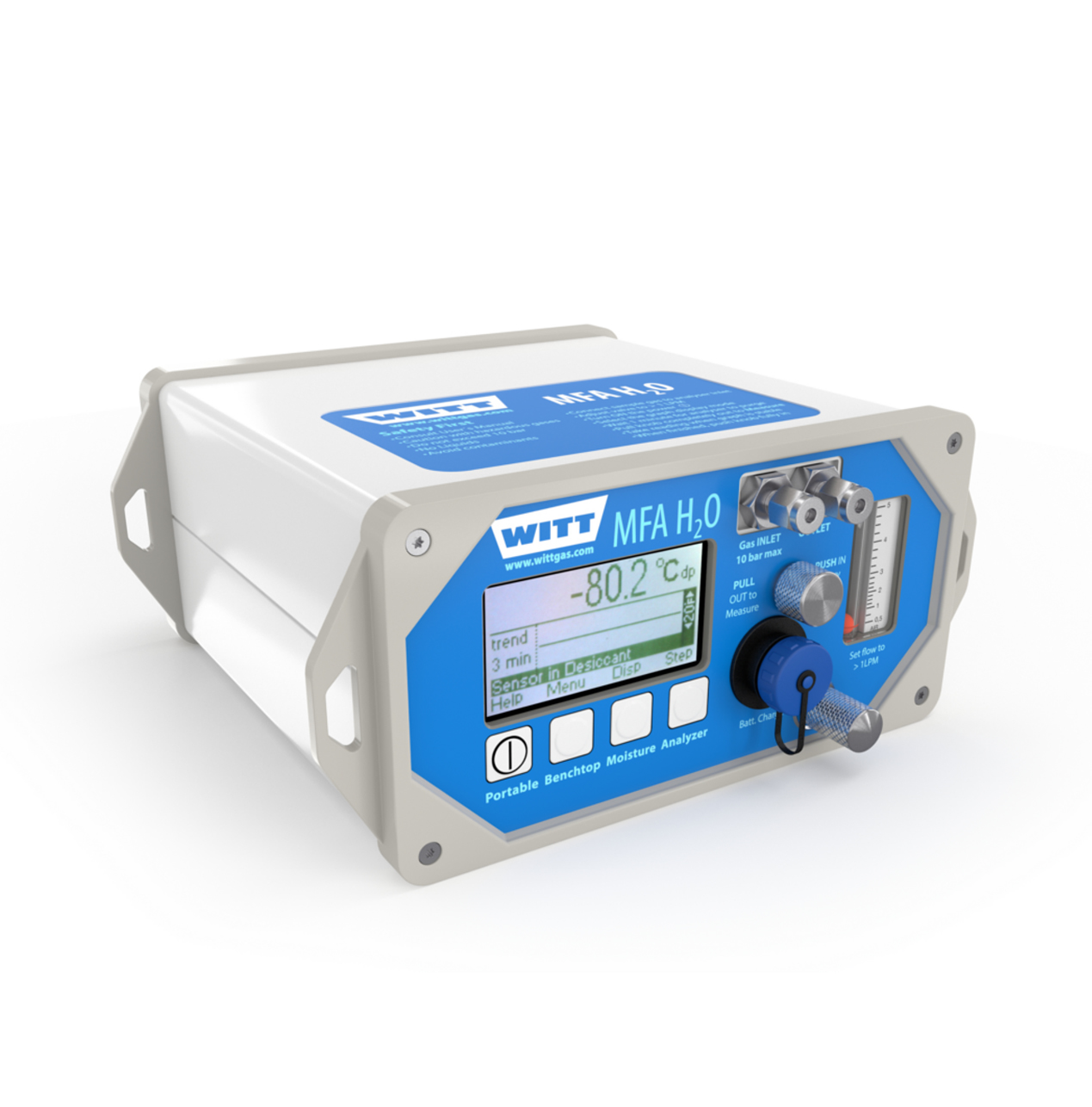

Moisture Analyser MFA H2O

Desktop analyser for moisture and dewpoint measurement in gases

reliable, quick and accurate

dew point from -110° C to +20° C

for a variety of applications

integrated data storage for dew point, temperature and pressure

optional: overpressure version, vacuum pump

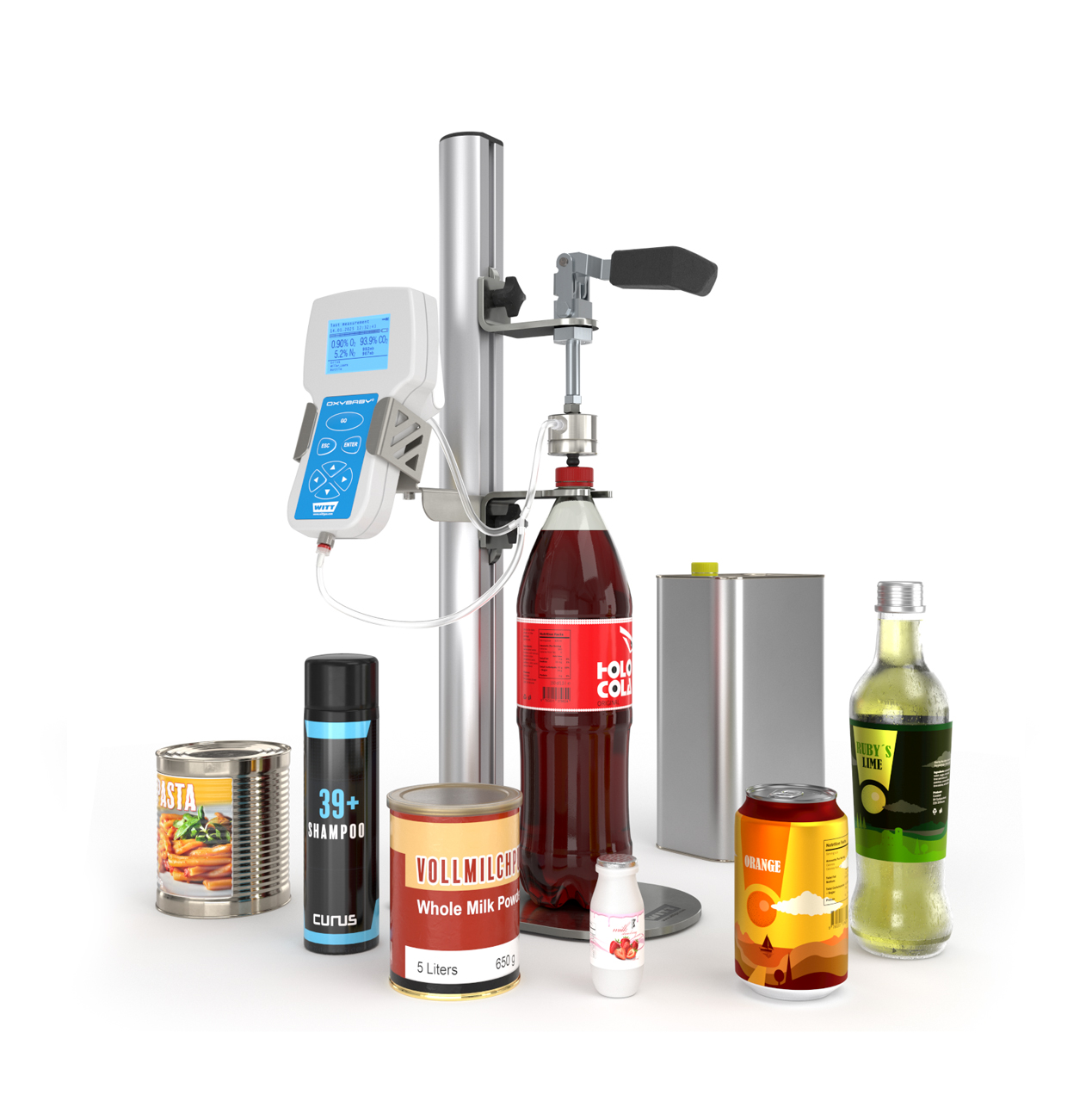

Can-Piercer

Accessories for headspace analysis of canisters, bottles, cans and mini packages

secure fixation of canisters, bottles, cans and mini packages up to a height of 405 mm / 15.94 inches

for OXYBABY®, MAPY and PA

easy operation

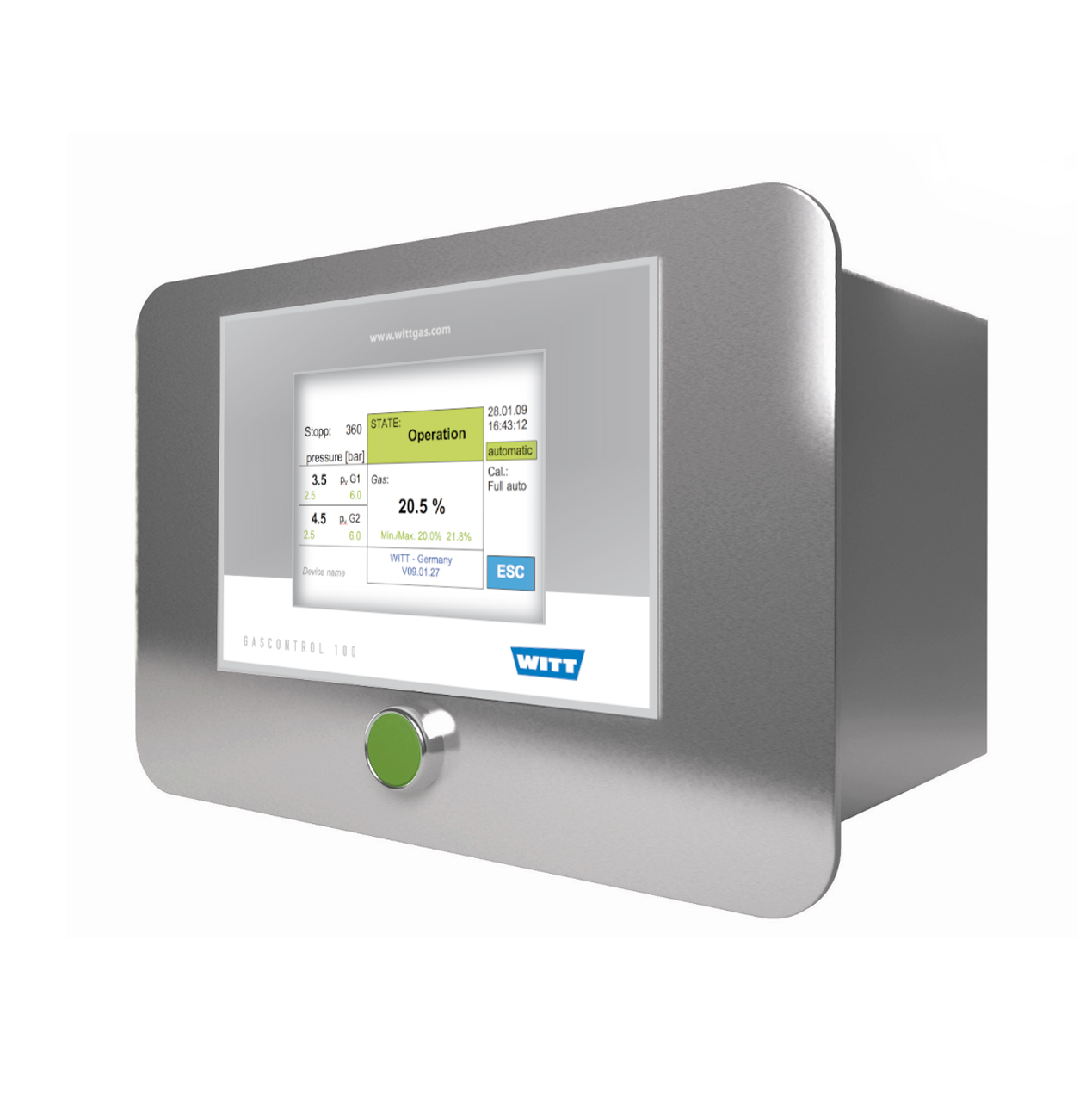

Inline Gas Analyser

Plug-in module for permanent analysis of gas mixture, e.g. for CO2, O2, H2, He

for a variety of applications

Ethernet-interface

permanent control of limits

elevated process safety

numerous options and special versions

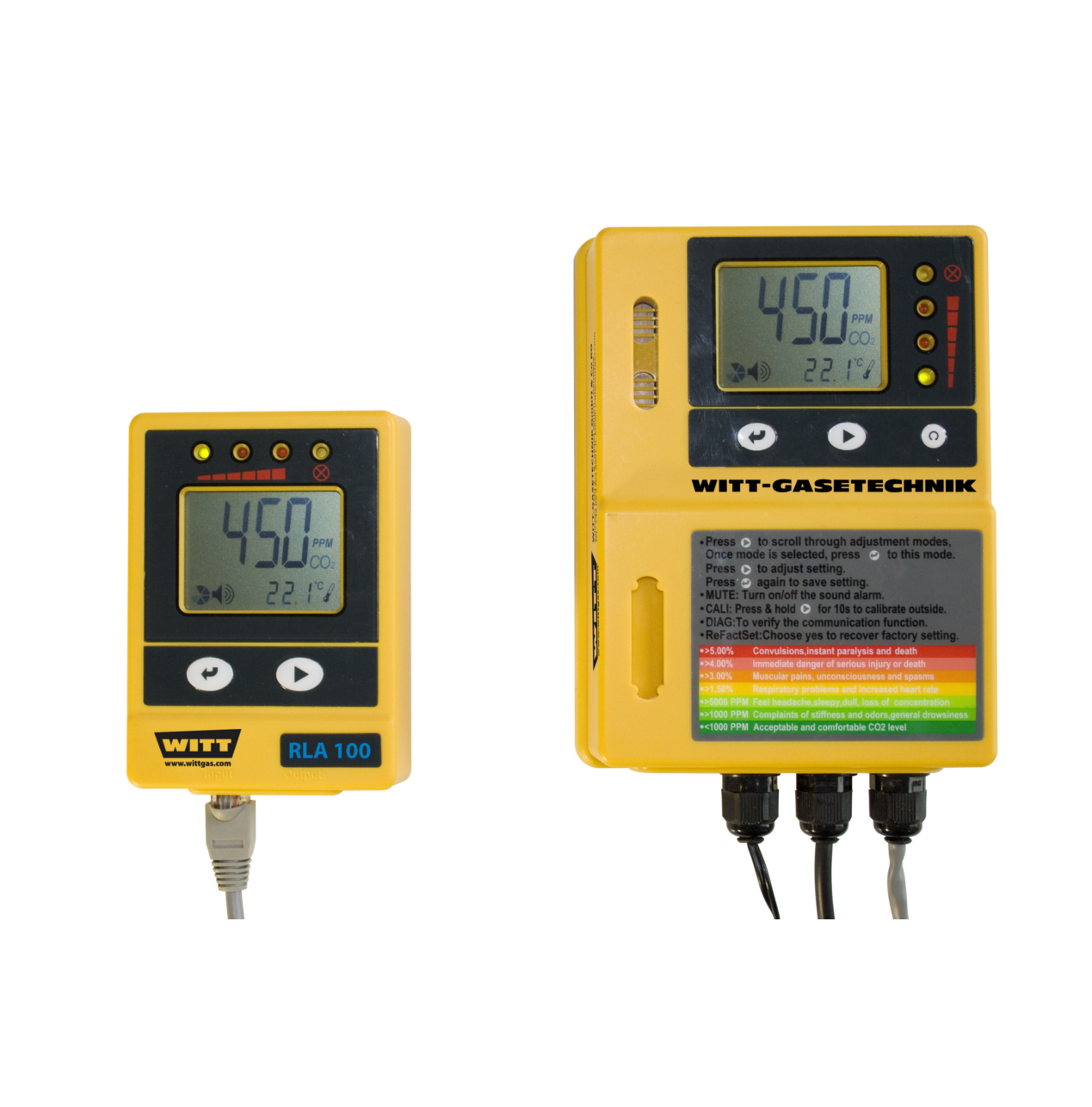

Ambient Air Monitoring System RLA 100

Ambient air monitoring for the detection of CO2

2 alarm limits (user-determined)

with digital display and LEDs

easy wall mounting

alarm light and horn

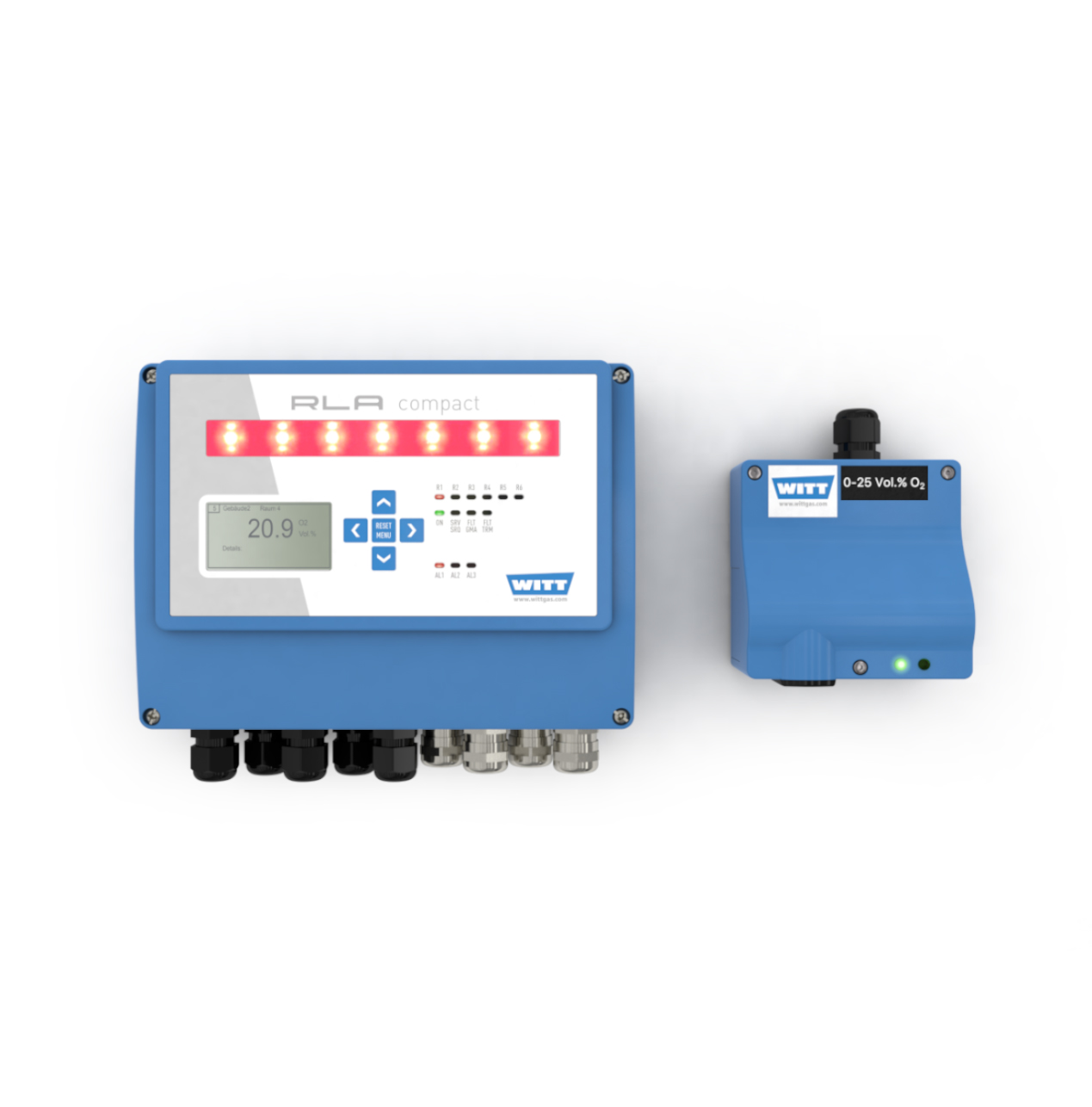

Ambient Air Monitoring System RLA compact

Ambient air monitoring for the detection of combustible and toxic gases or oxygen (O2), 1 to 4 transmitters

connection of up to 4 transmitters for different gases

with digital display and LEDs

6 internal relays, 4 of them freely programmable

alarm light and horn

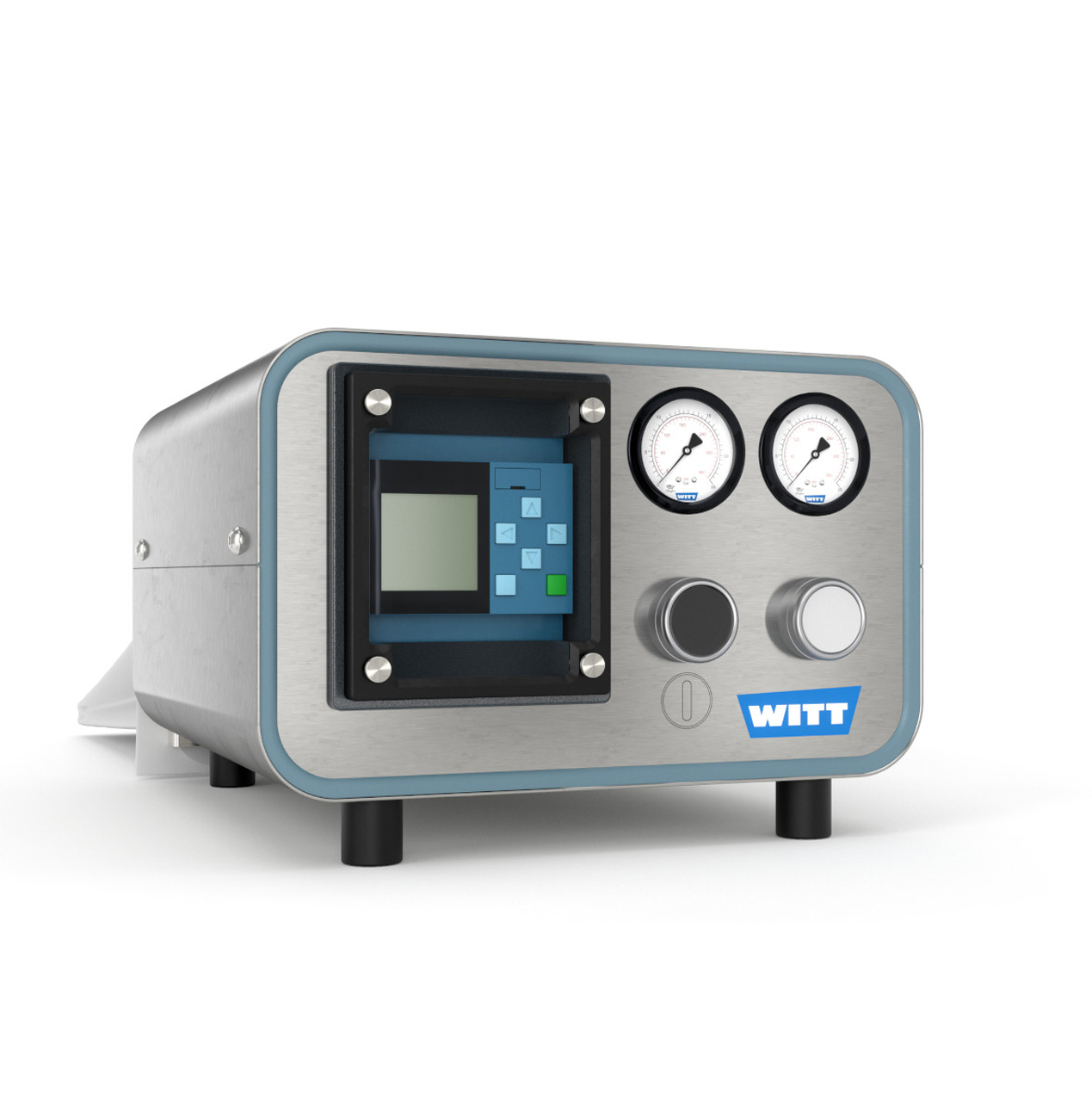

Back-purging filter

Back-purging device for in-line gas analysers against blocked filters on gas inlets

uncomplicated in-line gas analysis also with powdery products, e.g. milk powder, coffee or flour

purges automatically or at the push of a botton

contaminants are collected

ensures a smooth process
