Safety Relief Valves
WITT is a manufacturer of safety relief valves or pressure relief valves . Safety relief valves respectively pressure relief valves or pressure safety valves are designed to protect against overpressure by discharging pressurised gases (e.g. acetylene, ammonia, argon, CO2, helium, carbon monoxide, methane, propane, oxygen, nitrogen, hydrogen and compressed air) and vapours from pipelines, pressure vessels and plant components. Safety relief valves are often the last line of defence against explosion – and such an explosion could be fatal. Other common names for safety relief valves a
Pressure and Safety Relief Valves
WITT is a manufacturer of safety relief valves or pressure relief valves . Safety relief valves respectively pressure relief valves or pressure safety valves are designed to protect against overpressure by discharging pressurised gases (e.g. acetylene, ammonia, argon, CO2, helium, carbon monoxide, methane, propane, oxygen, nitrogen, hydrogen and compressed air) and vapours from pipelines, pressure vessels and plant components. Safety relief valves are often the last line of defence against explosion – and such an explosion could be fatal. Other common names for safety relief valves are pressure relief valve, safety valve, or blow-off valve.
Safety Relief Valve SV 805 / SV 805A
Safety Relief Valve for venting excess pressure from receivers, pipelines and other equipment, 0.5 to 45 bar
spring- loaded, direct-acting safety relief valve
every safety relief valve 100% tested
with or without venting adapter
certified to PED 2014/68/EC Module H
CE 0045
set to exactly the opening pressure you specify
length: 90-148 mm, 260/660 g
NEW: „smart-option“ for connected manufacturing
This model is also available in Stainless Steel

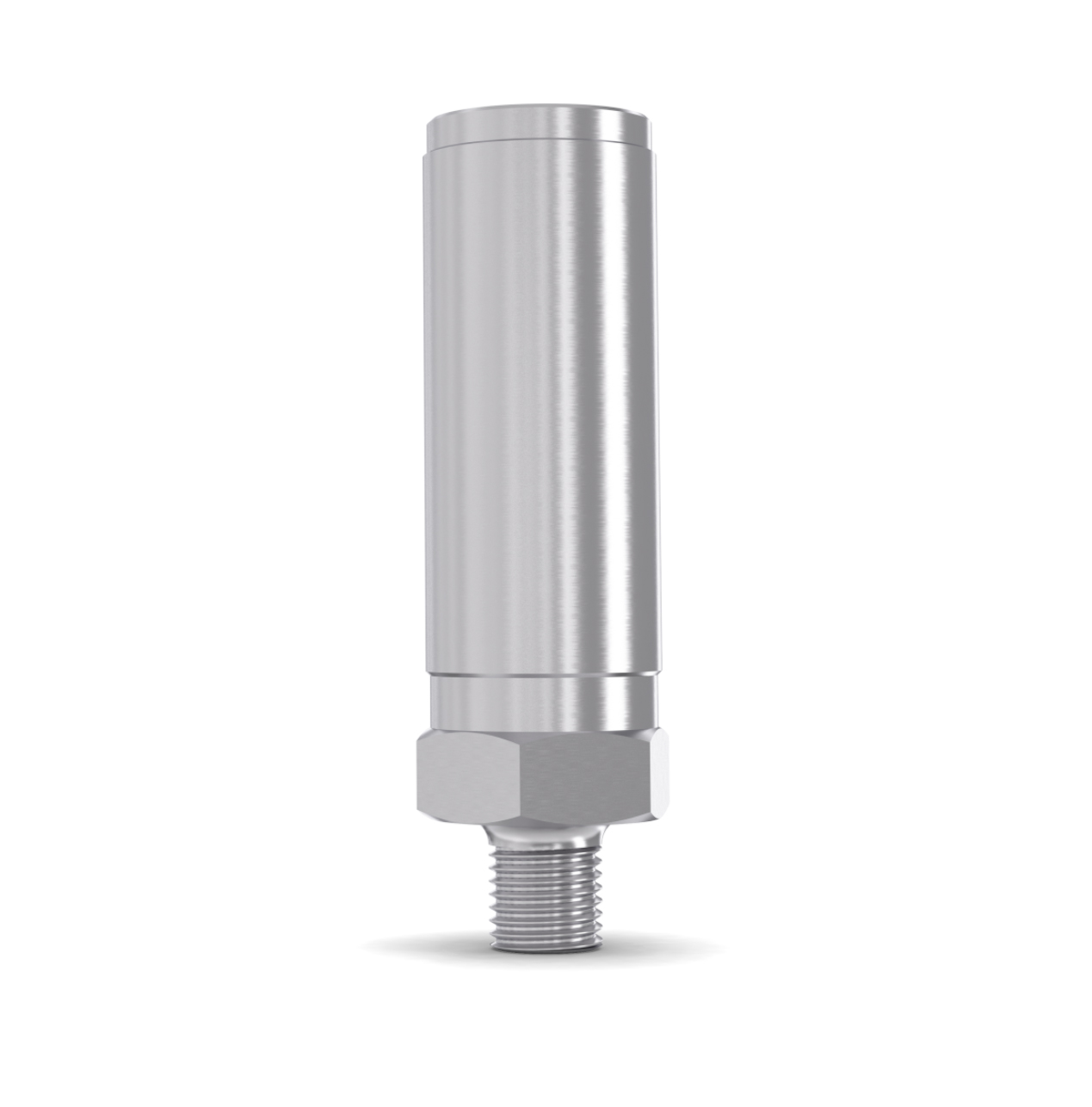

Safety Relief Valve SV 805-ES / SV 805A-ES
Safety Relief Valve, stainless steel, for venting excess pressure from receivers, pipelines and other equipment, 0.5 to 45 bar
spring-loaded, direct-acting safety relief valve
every safety relief valve 100% tested
with or without venting adapter
certified to PED 2014/68/EU, Module H
CE 0045
set to exactly the opening pressure you specify
also ideal for use with corrosive gases
length: 90-148 mm, 260/660 g
NEW: „smart-option“ for connected manufacturing

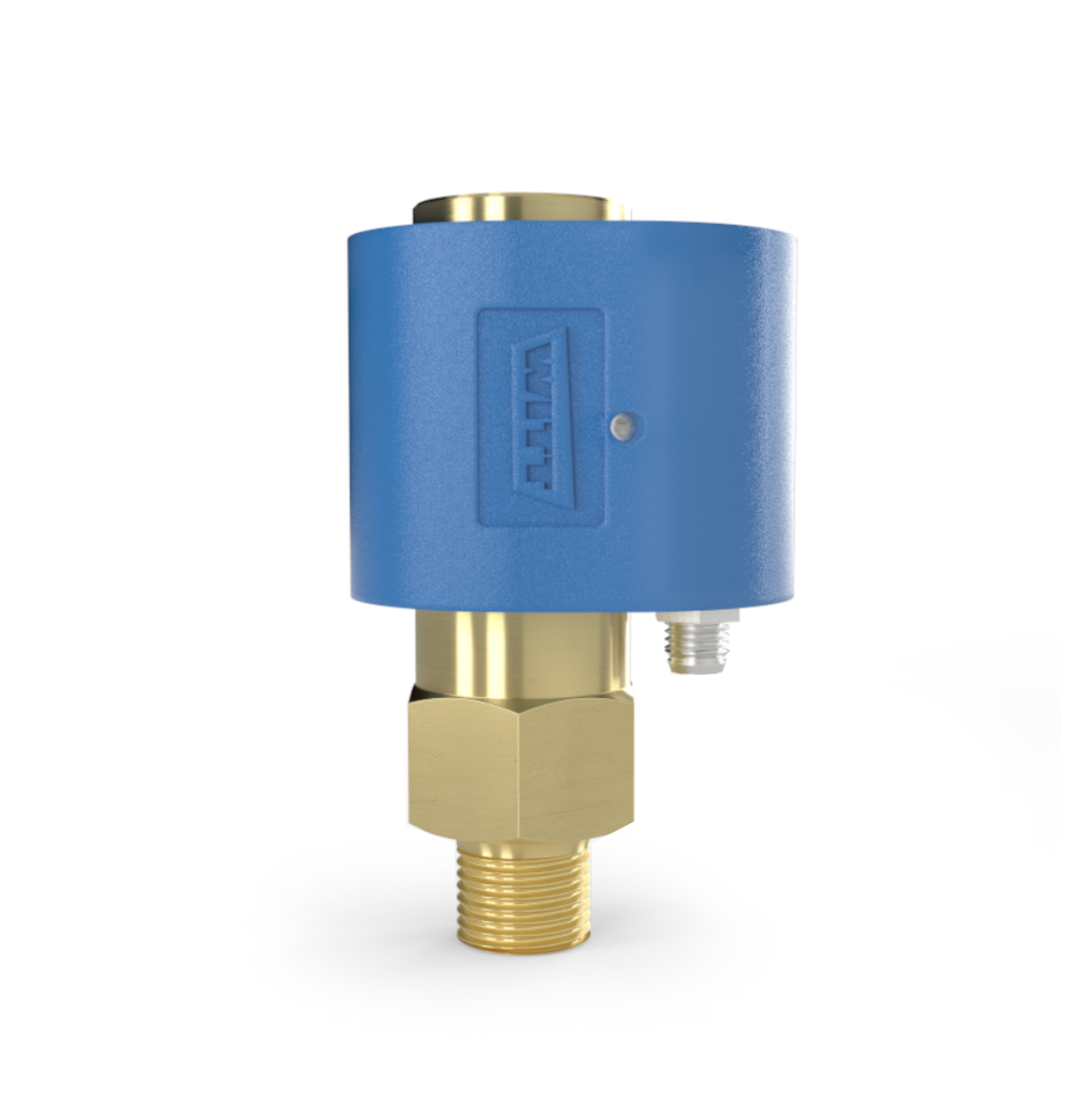

Safety Relief Valve SV 805 SMART
Smart Safety Relief Valve for venting excess pressure, up to 45 bar, display of status „open“ or „closed“
spring- loaded, direct-acting safety relief valve
every safety relief valve 100% tested
optical display of status „open“ or „closed“
digital signal for transmission to a control system
CE-marked according to PED 2014/68/EU
set to exactly the opening pressure you specify
length 90/95 mm
This model is also available in Stainless Steel

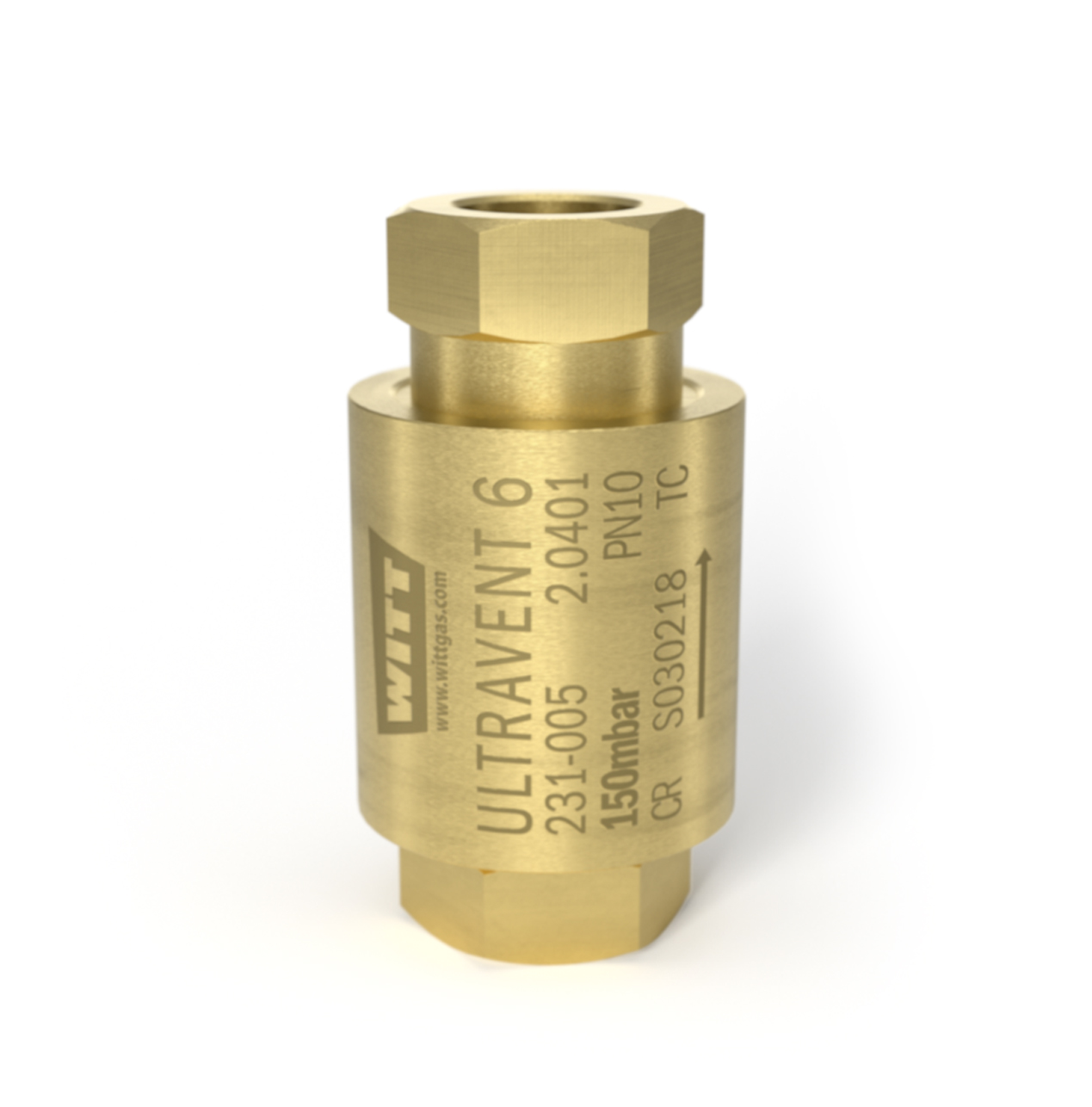

Safety Relief Valve ULTRAVENT 6
for precise control of under or over pressure between 5 and 500 mbar: can be used as a back pressure regulator, pressure control valve, vacuum breaker or classic safety relief valve. G 1/8 or 1/8" NPT threads
flow-optimised valve system for maximum blow-off performance
every millibar safety valve 100% tested
makes the smallest pressure ranges manageable and reliably protects sensitive processes and systems
unique: TÜV component mark as a safety valve in accordance with DIN EN 4126-1 (100-500 mbar)
lowest leakage rates thanks to high-quality elastomer seals
optional: FDA-approved elastomers and components
individual TÜV approval of the set opening pressure
This model is the follow-up to the AV 319.

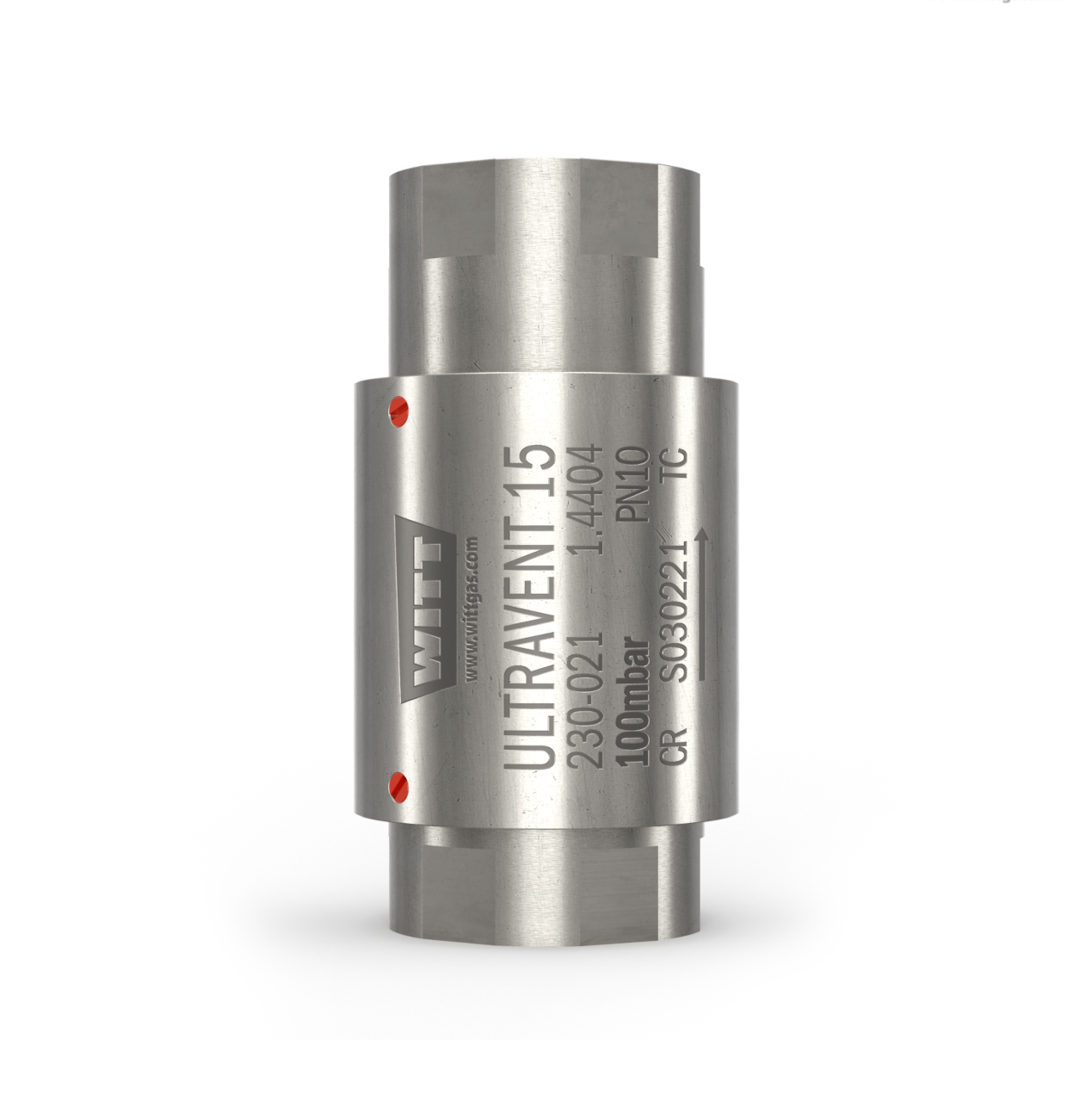

Safety Relief Valve ULTRAVENT 15-ES
for precise control of under or over pressure between 5 and 500 mbar: can be used as a back pressure regulator, pressure control valve, vacuum breaker or classic safety relief valve. G 1/2 or 1/2" NPT threads
flow-optimised valve system for maximum blow-off performance
every millibar safety valve 100% tested
makes the smallest pressure ranges manageable and reliably protects sensitive processes and systems
unique: TÜV component mark as a safety valve in accordance with DIN EN 4126-1 (100-500 mbar)
lowest leakage rates thanks to high-quality elastomer seals
optional: FDA-approved elastomers and components
individual TÜV approval of the set opening pressure

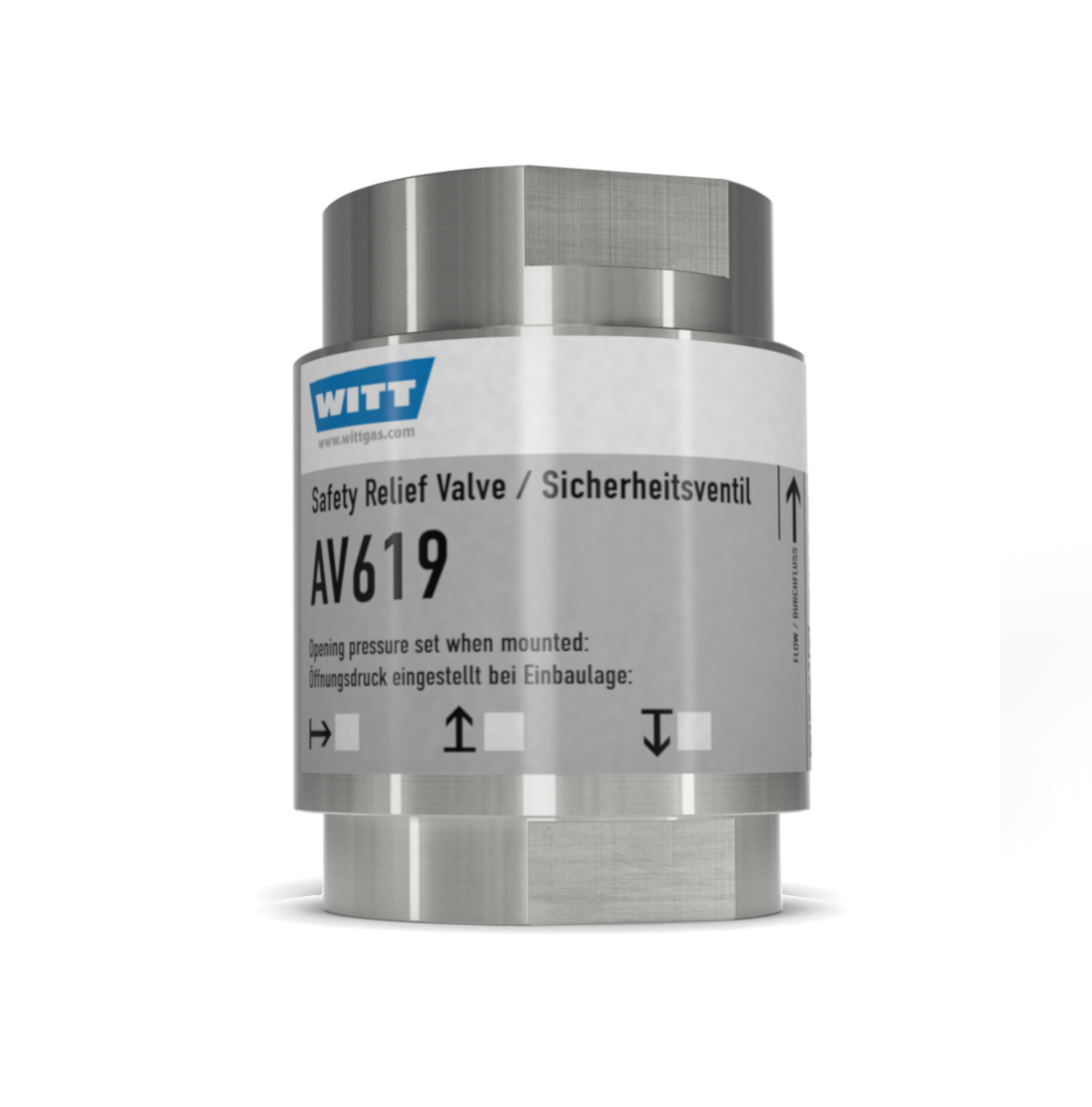

Safety Relief Valve AV 619-ES
Safety Relief Valve, stainless steel, for venting excess pressure from receivers, pipelines and other equipment, 5 up to 500 mbar
spring-loaded, direct-acting safety relief valve
every safety relief valve 100% tested
set to exactly the opening pressure you specify
TÜV-certification of openeing pressure setting
also available with FDA-approved elastomers (USP class VI)
ideal for use with corrosive gases
different connections for inlet and outlet
52 X 70,5-83,5 mm, 790 g

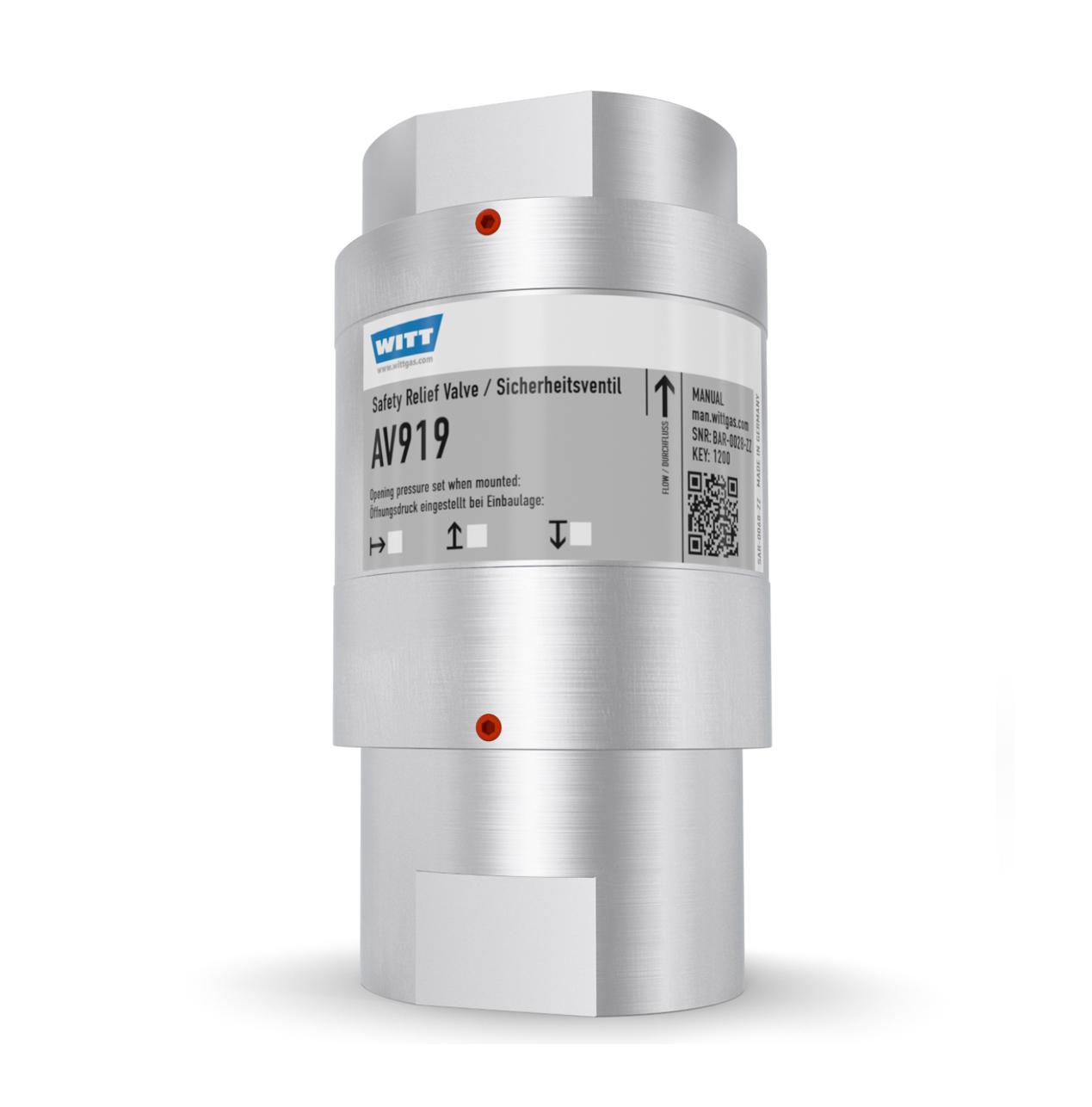

Safety Relief Valve AV 919
Safety Relief Valve, aluminium, for venting excess pressure from receivers, pipelines and other equipment, 5 up to 500 mbar
spring-loaded, direct-acting safety relief valve
every safety relief valve 100% tested
set to exactly the opening pressure you specify
TÜV-certification of pressure setting
89,5 X 144-170 mm, 1.500 g
This model is also available in Stainless Steel
